Build Guide - Calibration

Test Point Trimpot Procedure
TP-C2/TP-C3
P805

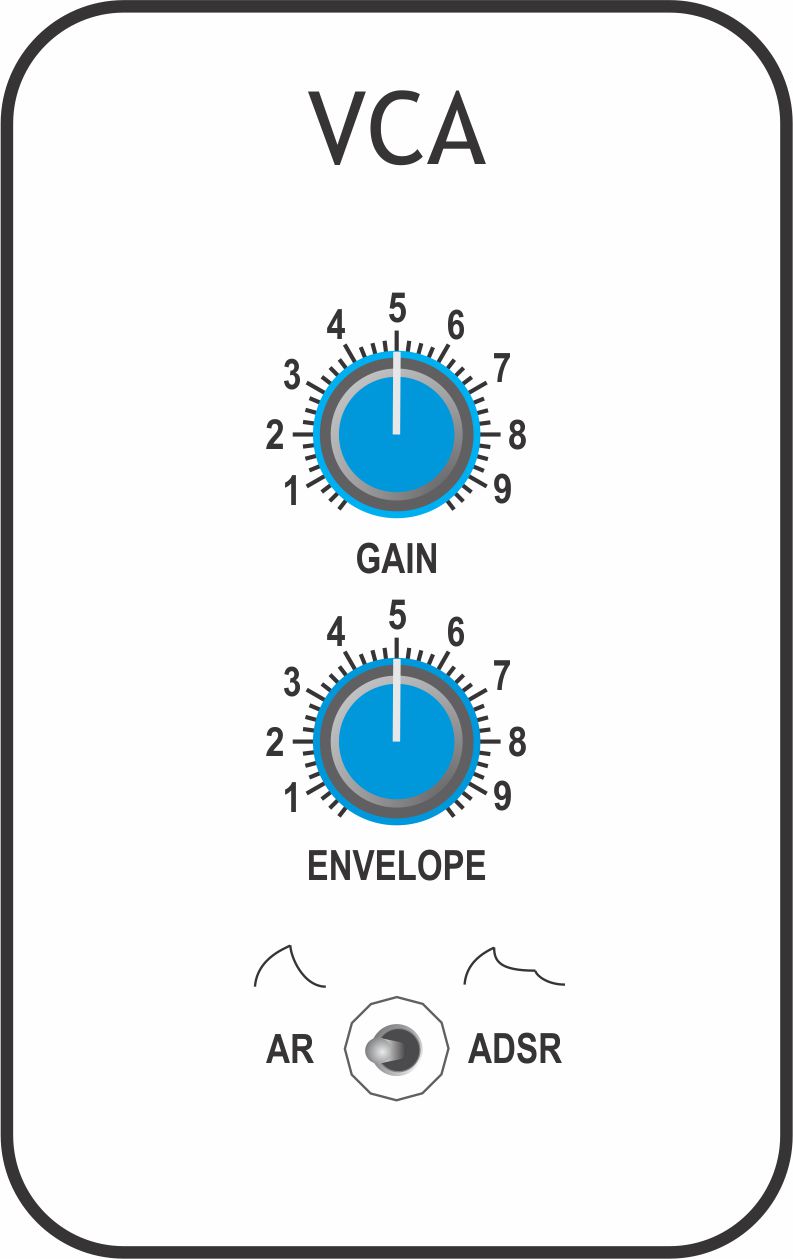

  1. Set [GAIN] to maximum
  2. Monitor TP-C2 with an oscilloscope
  3. Note the peak-peak amplitude of the signal
  4. Monitor TP-C3
  5. Adjust P805 so that the amplitude matches that observed in step (3)
TP-C3
P802
  1. Set [GAIN] to maximum
  2. Monitor TP-C3 with an oscilloscope
  3. Adjust P802 for the minimum amplitude of signal
