Build Guide - Calibration

Test Point Trimpot Procedure
'RATE' LED
P302

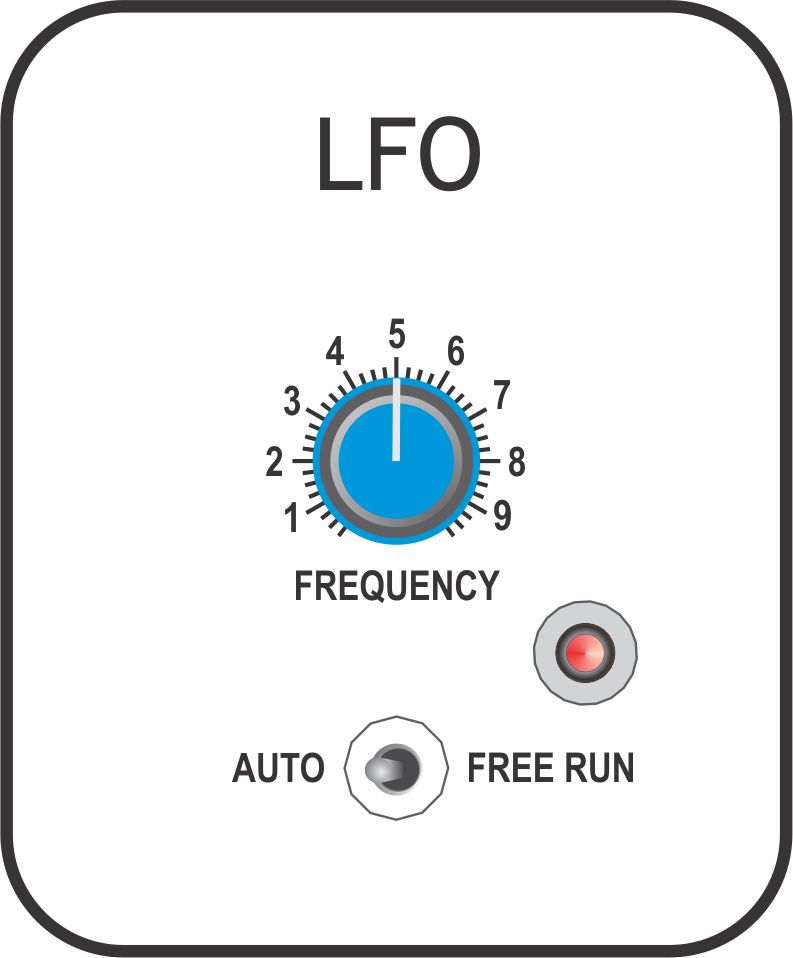

  1. Set [LFO MODE] to 'FREE RUN'
  2. Adjust [FREQUENCY] so that the LED modulates at an observable rate
  3. Adjust P302 for optimum illumination at both minimum and maximum points of the LFO waveform
