Build Guide - Calibration

Test Point Trimpot Procedure
TP-
P1
  1. Se
TP-C2
P908

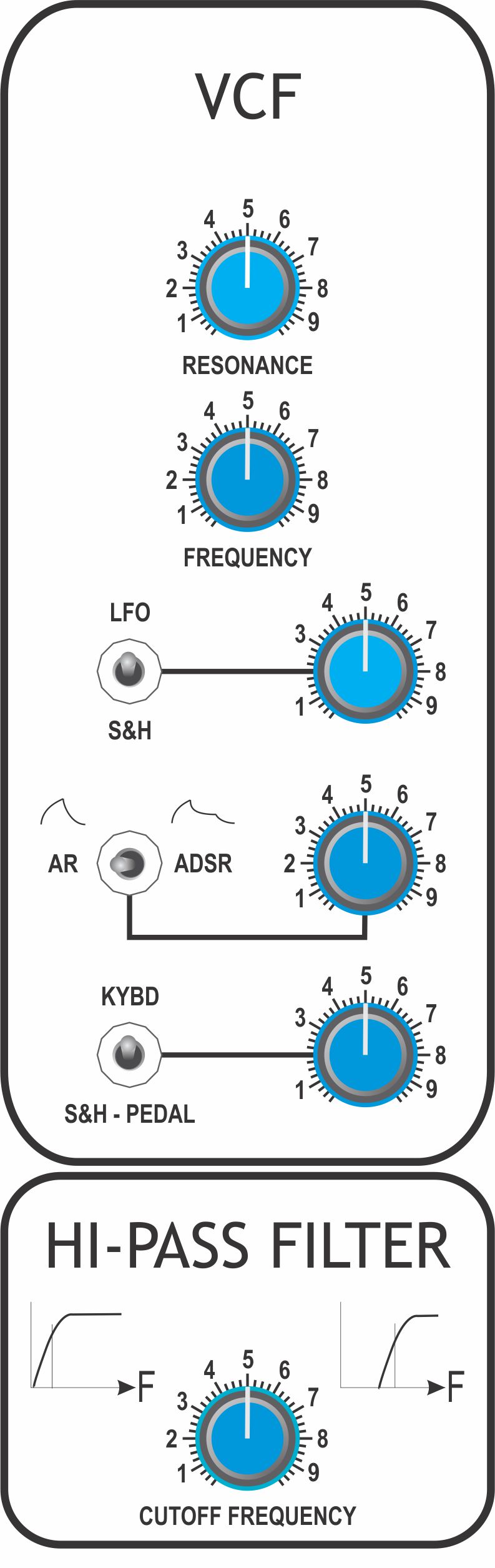

  1. Set [RESONANCE] to maximum
  2. Turn all other knobs to minimum
  3. Monitor TP-C2 with an oscilloscope or frequency counter
  4. Adjust P908 for a 62.5mS period or 16Hz
TP-C1
P907
  1. Set [RESONANCE] to maximum
  2. Turn all other knobs to minimum
  3. Monitor TP-C1 with an oscilloscope or frequency counter
  4. Press 'LOW C’ on the keyboard
  5. Adjust [FREQUENCY] for 100Hz
  6. Press 'HIGH C' on the keyboard
  7. Adjust P907 for 800Hz
  8. Repeat steps (4) to (7) until the frequency of the VCF is correct on both 'LOW C' and 'HIGH C'
