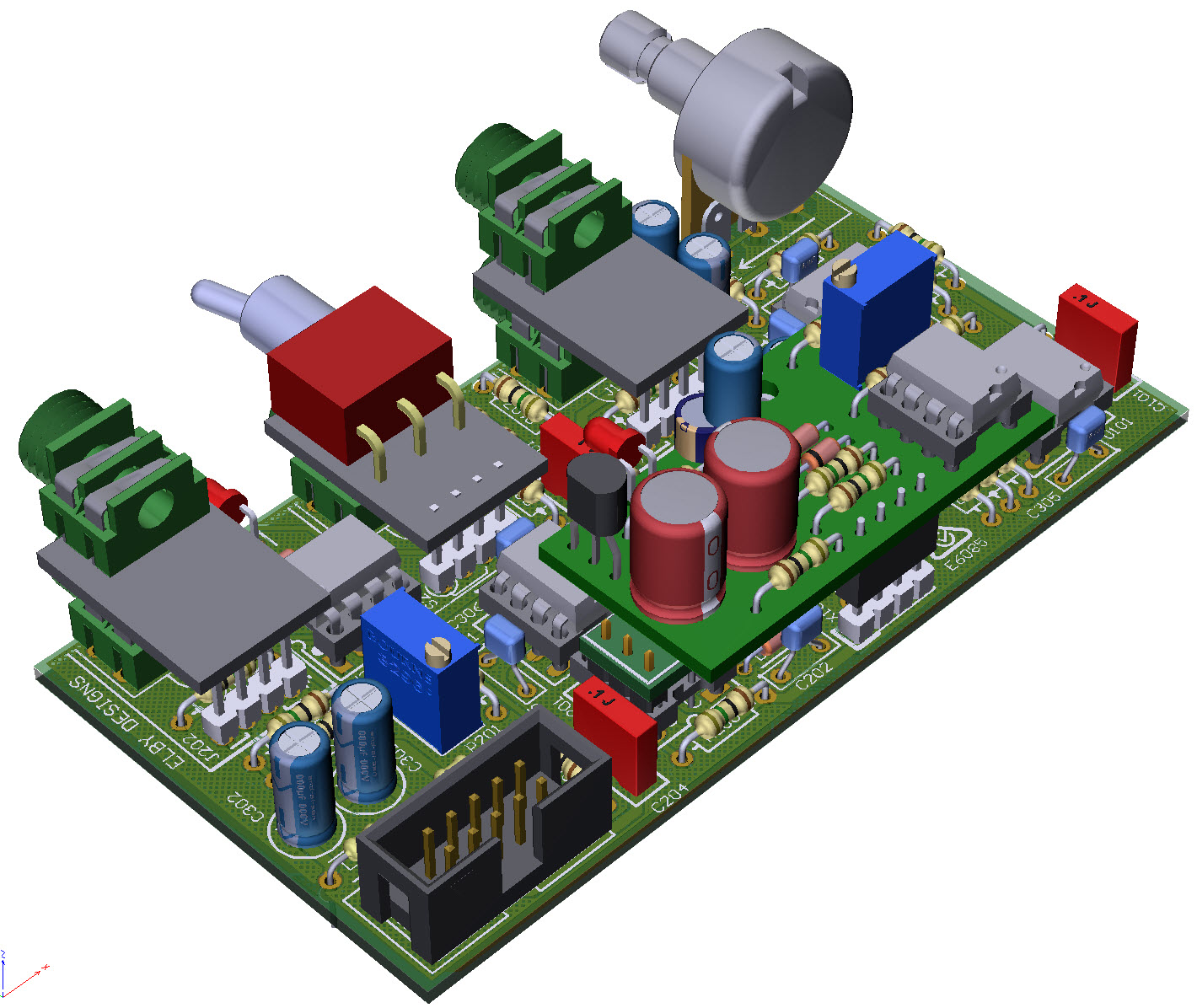

3D Model	Overlay	Plan View
ES02 Peak PCB
ES02 PCB

Constructors should refer to the Component Overlays along with,
the Bill of Materials 3.5mm 4mm for the current value of all components, and
the General Construction Notes for general PCB assembly guidelines.

1. Start by fitting thr LED Lens Mounts on to the Front Panel
2. Assemble the 2x Jack Carrier boards
3. Assemble the 1x Switch Carrier board
4. Prepare LED D3 by shortening it slegs and adding wires as per the notes in the General Contruction Notes
5. Fit all components to the ES02 Peak PCB except for the LED D204
6. Fit all the components to the ES02 PCB except for the 3x sub-assemblies
7. Mount the sub-assemblies on to the ES02 PCB but do not solder
8. Offer the ES02 assembly up to the front panel and secure using the supplied nuts and washers
9. Solder the sub-assemblies in to position
10. Form the legs on the LED D204 noting the orientation on the PCB
11. Install and solder into place
12. Mount the ES02P assembly
13. Check the length of the wires on D3 and adjust as necessary
14. Strip and twist approximately 3mm off each wire
15. Remove the ES02P assembly and solder the LED wires into their respective pads on the ES02P PCB
