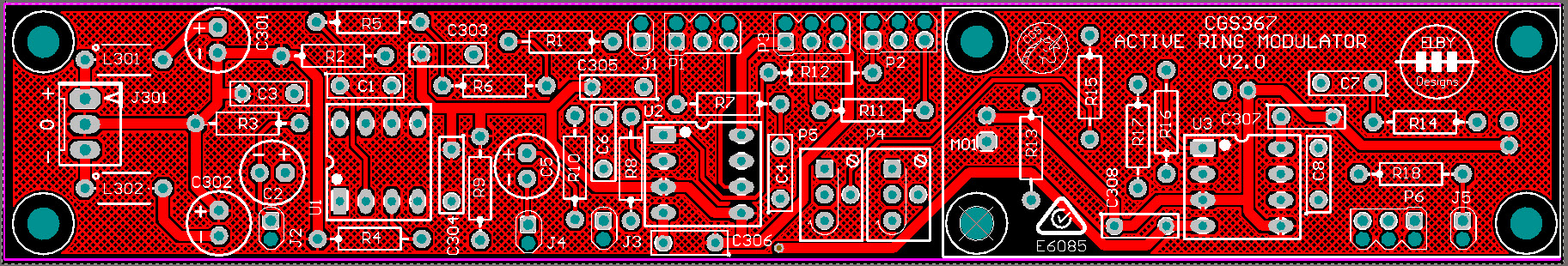

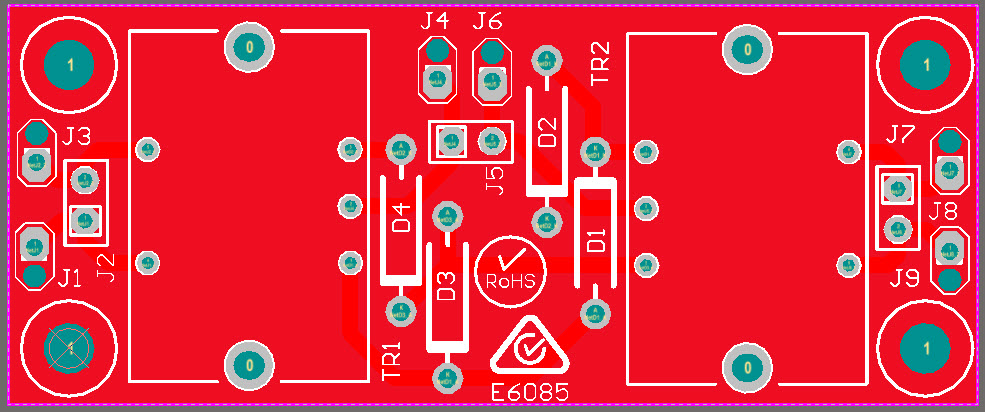

Constructors should refer to the Component Overlays along
with,
the PCB Bill of
Materials for the current value of
all components, and
the General
Construction Notes for general PCB
assembly guidelines.
The Component/Hardware Kits include a
trimpot P7 and a panel pot P6 which allow
adjustment of the [OUTPUT] level. This will
usually be done as ‘set and forget’ in which
case P7 should be installed and P6 not fitted.
If you prefer a panel control for the [OUTPUT]
level then fit P6 and omit P7.
