Constructors should refer to thePCB
Bill of Materials for the current
value of all components,
and
the General
Construction Notes for general PCB
assembly guidelines.
Modifications
The following modification provides a
better match in the output levels of the
[SINE] and [VARIABLE] waveshapes relative to
those of the [SAW], [SQUARE] and [STAIRCASE]
waveforms:-

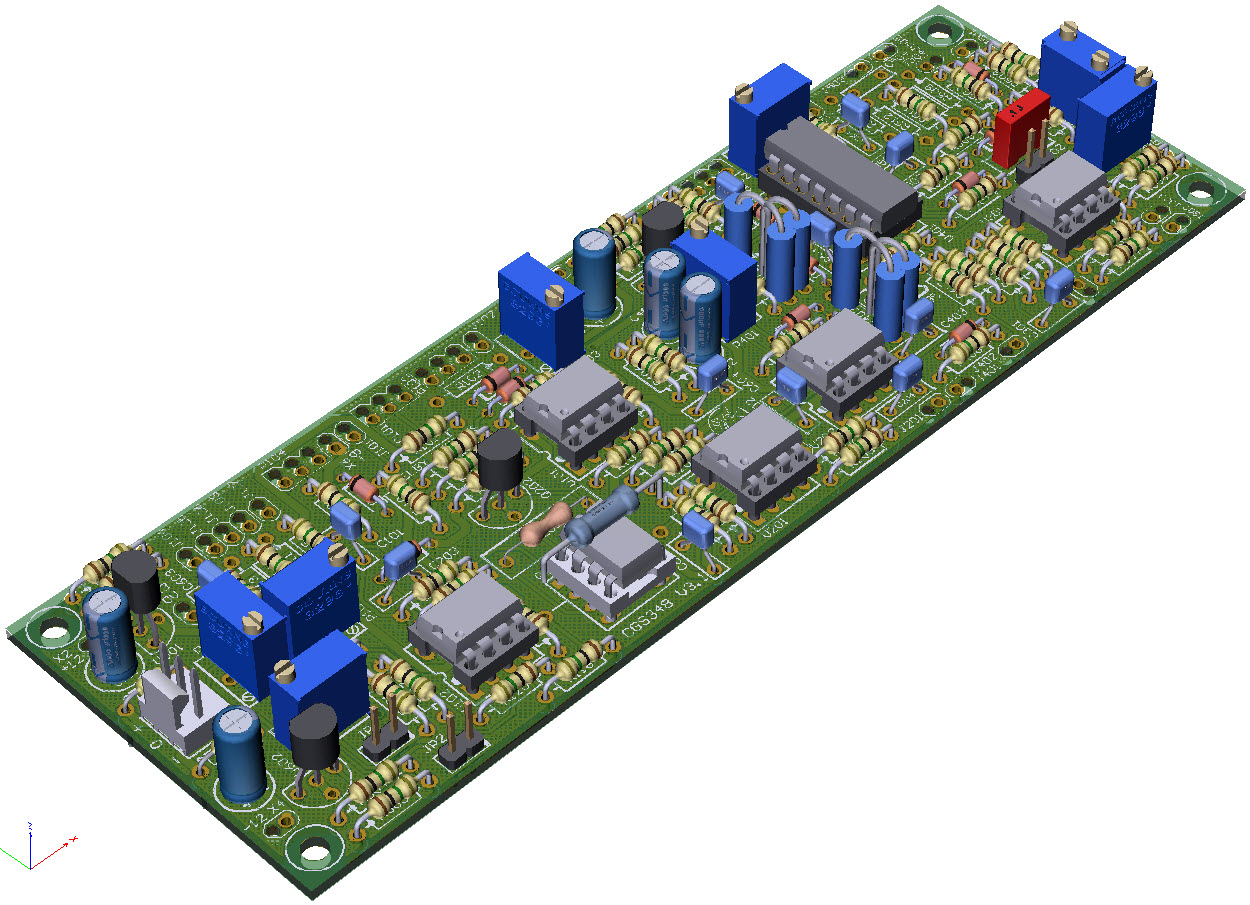

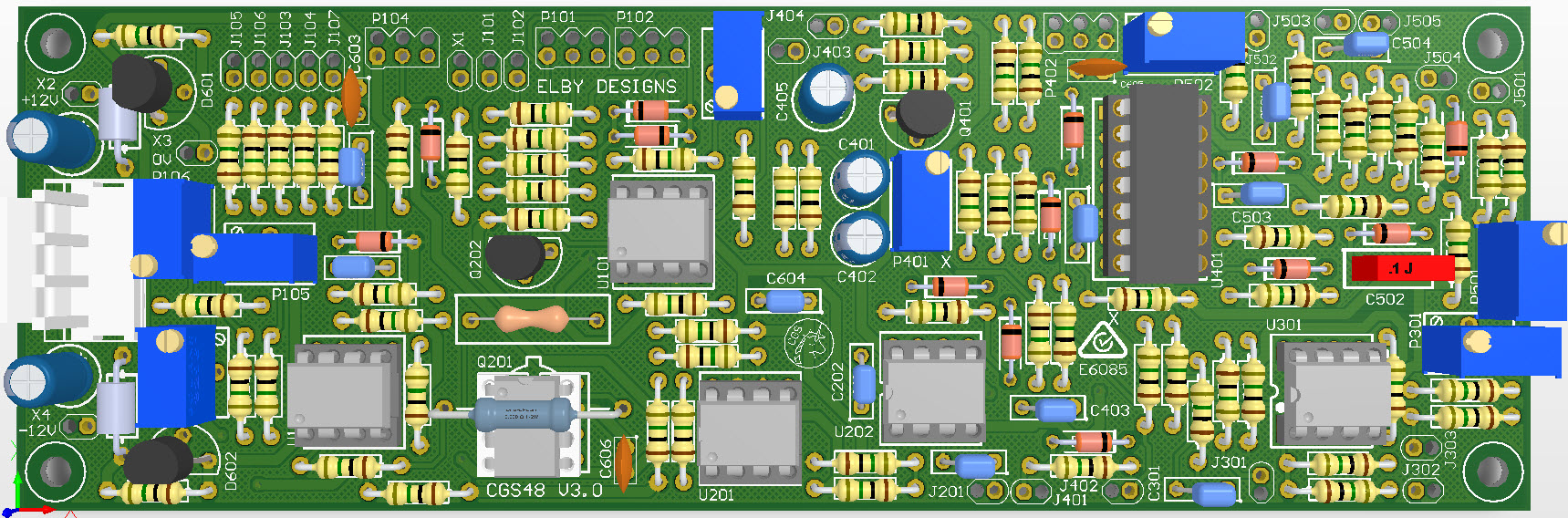

- Mount R402 & R403 vertically in
the lower pads of their footprint
- Mount R418 vertically in either of
the upper pads of R402/R403
- Tie the 3 loose ends together and
solder all parts
- Mount R410 & R411 vertically in
the lower pads of their footprint
- Mount R419 vertically in either of
the upper pads of R410/R411
- Tie the 3 loose ends together and
solder all parts
.
