The Series 700 is a boat style enclosure with an internal module depth of ~84mm and available in the standard widths of 42HP, 84HP, 104HP, 126HP and 168HP. Other interim widths of 62HP, 146HP and 188HP are available on special order.

The Studio 700 Family

(Lid
(Studio 700 Boat c/w End Cheeks - Studio 700 Portable)
(Studio 700 Boat)

White End Cheeks are available to cosmetically enhance the appearance of the Studio 700 aswell as raise the metal boat off the work surface to prevent scuffing and scratching of both the work surface and the boat.

With End Cheeks fitted you can fit a Studio LID as a deep lid. This lid allows a semi-patched boat to be transported without the need to unpatch.
To simplify patching between multiple boats we recommend the use of the ED142 Extenda-Patch.

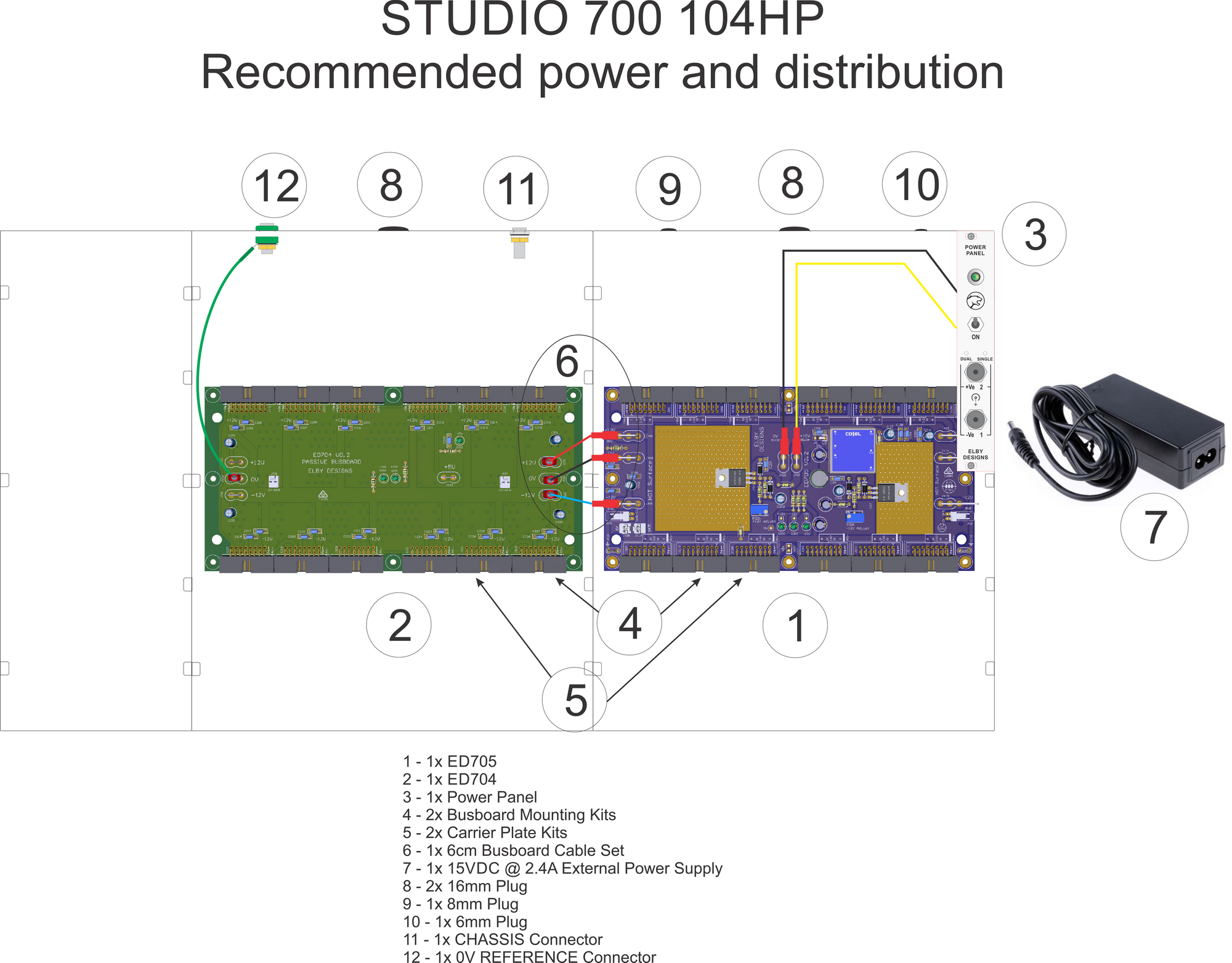

Studio 700 Powered Boats

Our Studio 700 Powered Boats offer a complete solution for housing your EuroSynth/EuroRack modules. They can be supplied in 'flat-pack' form (requires just a screwdriver and a nut spanner) or ready-assembled.

Each Powered Boat comprises:-

  Maximum #
of Busboards
ED705
Powered
Busboard(*)
Loading Capacity
ED704
Passive
Busboard(*)

Busboard
Mounting
Kits

4HP Power Panel 15VDC Brick

# of Powered
Modules

42HP
2
1
+12V @ 1.5A, -12V @ 1A
0
1
1
1 x 2.4A
12
84HP
4
1
+12V @ 1.5A, -12V @ 1A
1
2
1
1 x 2.4A
24
104HP
4
1
+12V @ 1.5A, -12V @ 1A
1
2
1
1 x 2.4A
24
126HP
6
1
+12V @ 1.5A, -12V @ 1A
2
3
1
1 x 2.4A
36
168HP
8
2
+12V @ 3.0A, -12V @ 2A
2
6
1
1 x 4.6A
48

(*) The indicated number of busboards (both powered and passive) is the recommended minimum configuration offering good power capacity and plenty of, and easily accessible, module power outlets. Passive busboards may be replaced with powered busboards if extra power is required (the number of module outlets does not change). So, for example, the Studio 700 84HP could have 2x ED705 giving a load capacity of +12V @ 3A and -12V @ 2A with 24 module outlets.

Each boat is fitted with a 4HP Power Panel which allows the external 15VDC supply to be quickly and easily connected and disconnected. The 4HP Power Panel also includes 'Power In' status indication and an ON/OFF switch. Having the external power connection on the front panel also means that during transport there are no external parts that can get knocked or damaged and makes loading the case into a tight space easier.

The available module space is thus:-

Case Width Module Space Bill Of Materials
42HP
80HP
84HP
164HP
104HP
204HP
126HP
248HP
168HP
332HP

Powered Case User Manual

Studio 700 Assembly Notes

Fitting a Studio Lid

Multi-Studio Configurations using the Studio Tree
