The Series 300 is a skiff style enclosure with an internal module depth of ~52mm* and is available in the standard widths of 42HP, 84HP, 104HP, 126HP and 168HP. Other interim widths of 62HP, 146HP and 188HP are available on special order.
The Studio 300 Family
(Studio 300 Portable Skiff)
(Lid
- Studio 300 Skiff with End Cheeks - Studio 300 Skiff)
Studio 300 42HP
The Studio 300 uses a new design for the power and distribution in the shape of the ED711 Active Bus and the ED713 Power Board:-
- The ED713 is a small power board that mounted on the back wall of the Studio 300 Skin and provides +/-15V power rails
- The ED711's are designed to 'stand' under the centre rails and so have minimal intrusion in to the module space. The ED711 is an 'active' busboard that has onboard regulators that generate dedicated +/-12V rails for each module outlet.
Having the ED711's and ED713's mounted vertically under the module rails maximises the depth of the module spaces and has minimal impatc on the 'height' of the module PCB.
White End Cheeks are available to cosmetically enhance the appearance of the Studio 300 aswell as raise the metal skiff off the work surface to prevent scuffing and scratching of both the work surface and the skiff.
With End Cheeks fitted you can fit a Studio LID as a deep lid.
This lid allows a semi-patched boat to be transported without the need to unpatch.
To simplify patching between multiple boats we recommend the use of the ED142 Extenda-Patch.

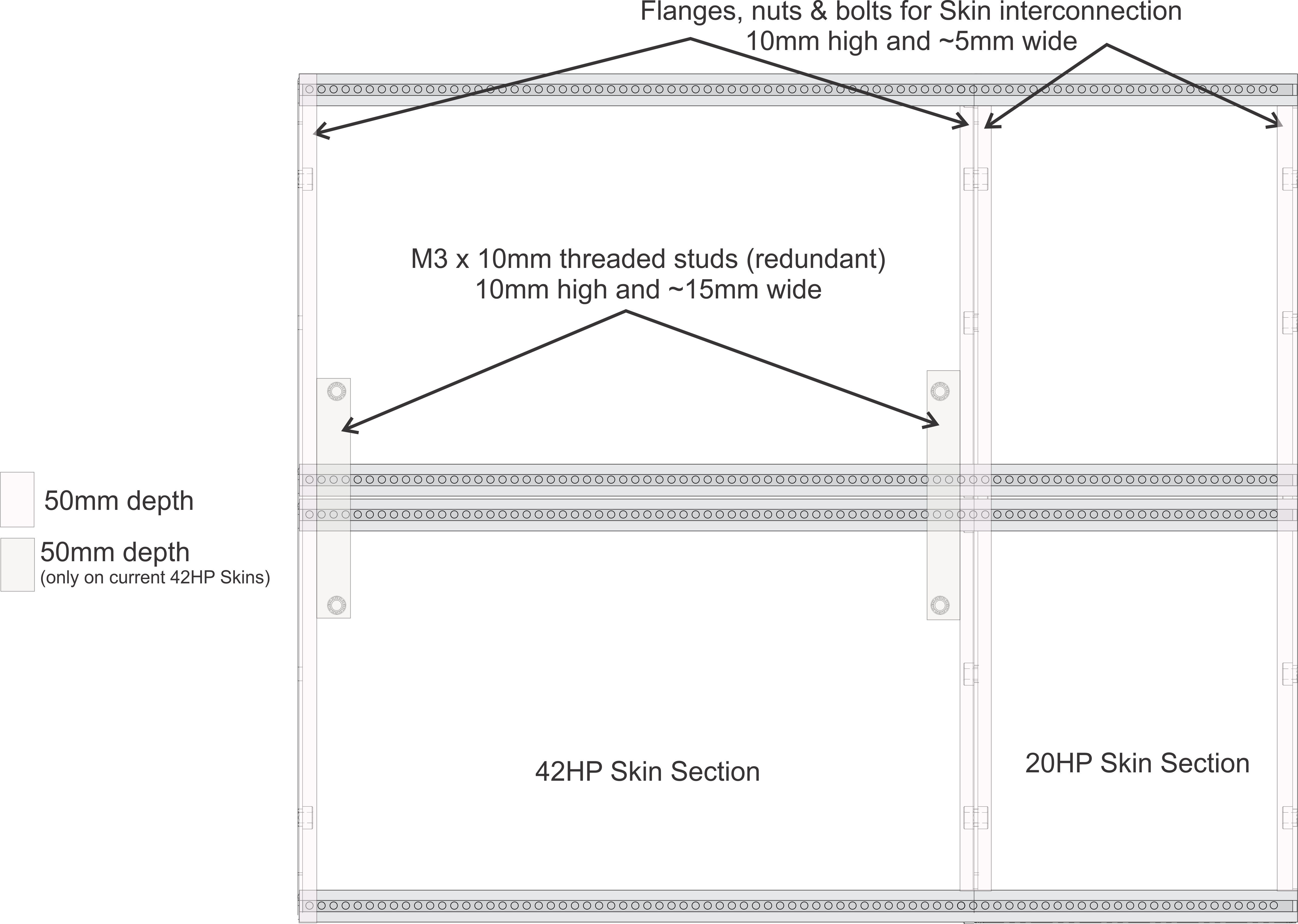

* This is the nominal depth guaranteed across the whole lwidth of the Studio 300. Large section so fthe case, however, have a depth of ~60mm so as long as a module does not sit over the 'hi' zones shown here then modules up to 60mm can be accomodated.
