IF120 - Chaotica V1.1
Let's Go Shopping

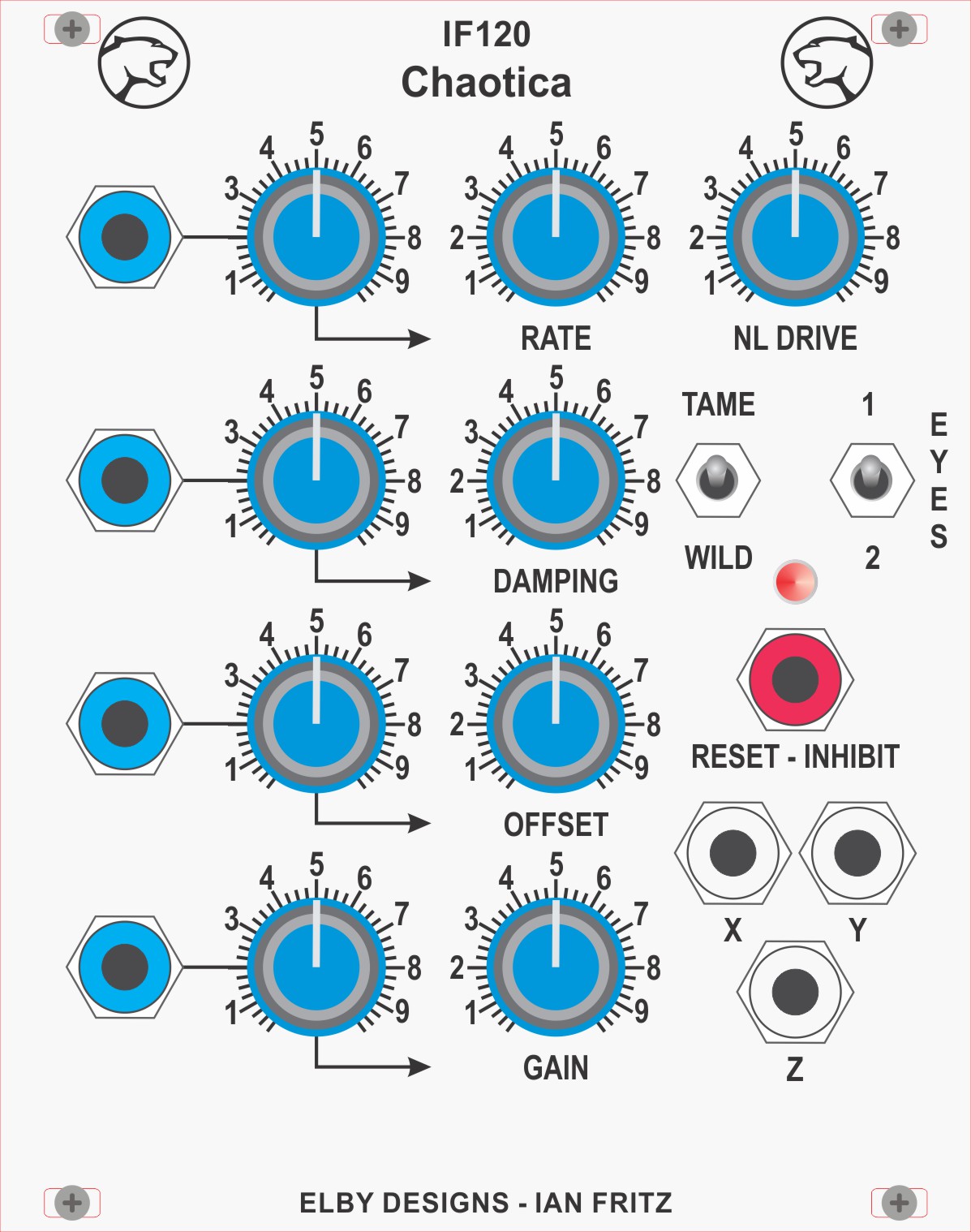

The IF120 is a multi-featured, autonomous, third-order chaos generating circuit. Its features include

  1. a third-order response with a total of four non-linear elements in the circuit path
  2. switch selectable non-linear elements
  3. voltage control of rate, loop damping, gain and offset. and
  4. a reset/inhibit input which allows the system to be set to zero voltage at all three integration stages.
