3D Model	Overlay	Plan View

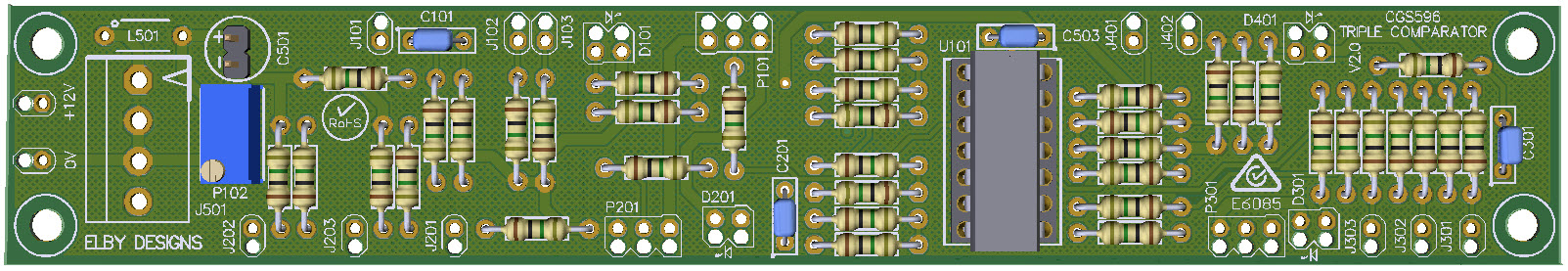

CGS596 PCB

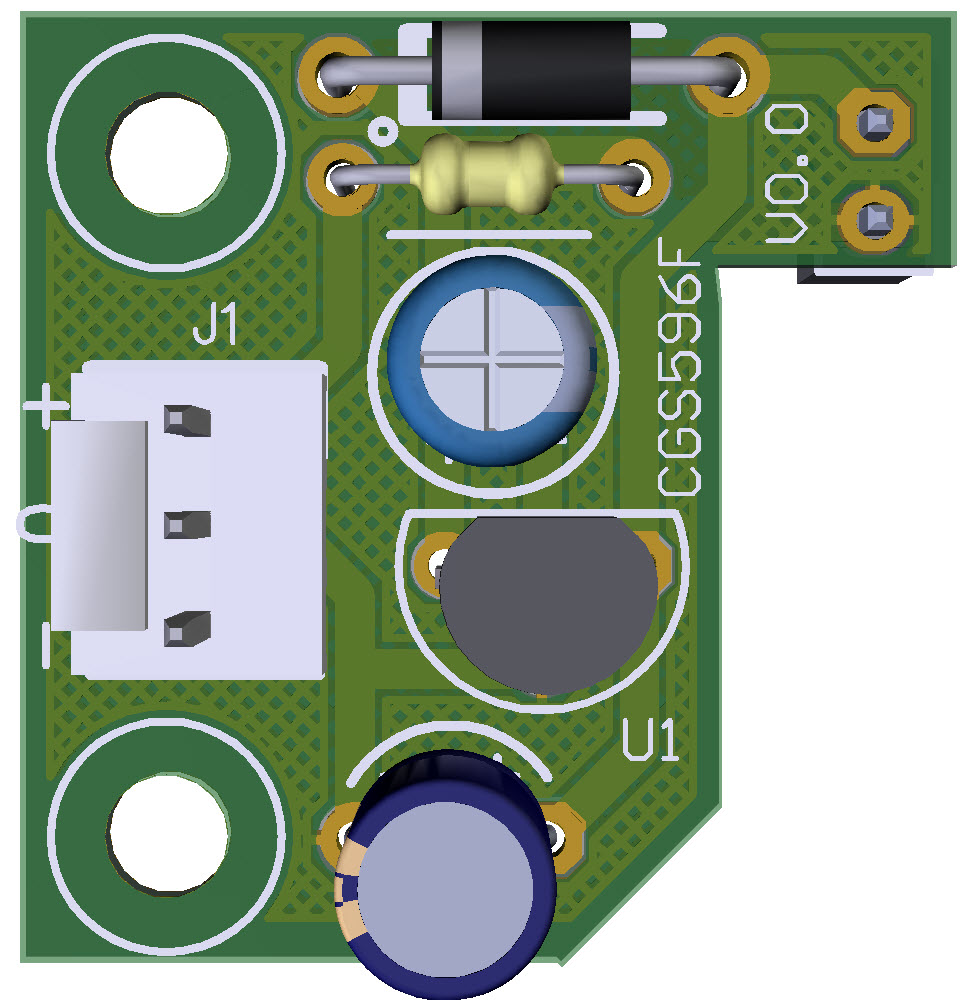

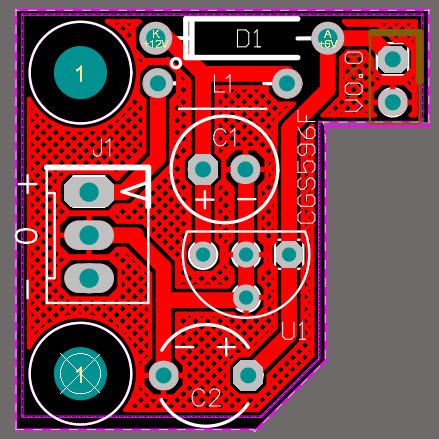

CGS596F PCB

Constructors should refer to the PCB Bill of Materials for the current value of all components,
and the General Construction Notes for general PCB assembly guidelines.

1. Fit all components to the main PCB excluding the parts identified as Do Not Fit (J501 & L501)
2. Fit all components to the chicklet PCB

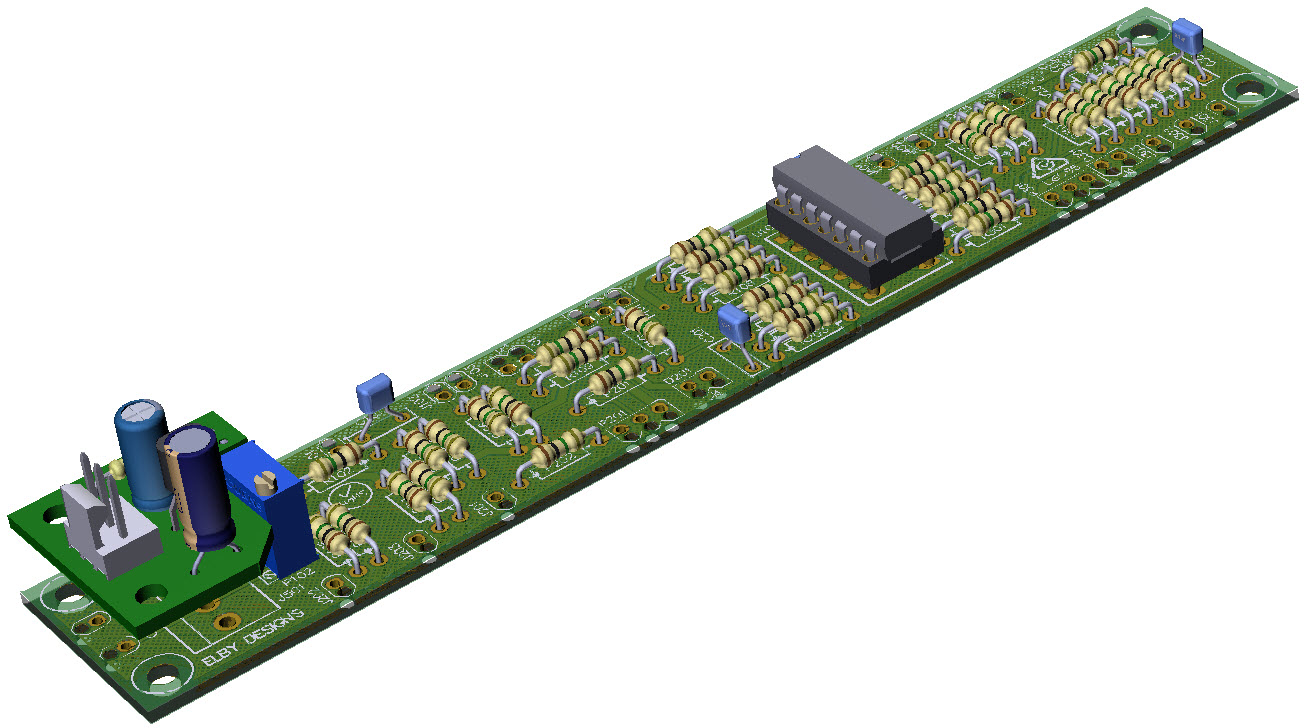

3. Mount the chicklet, ensuring that the receptacle X1 mates with the header at C501, using 2x M3x12mm spacers and M3x6mm bolts
