Build Guide - PCB Assembly

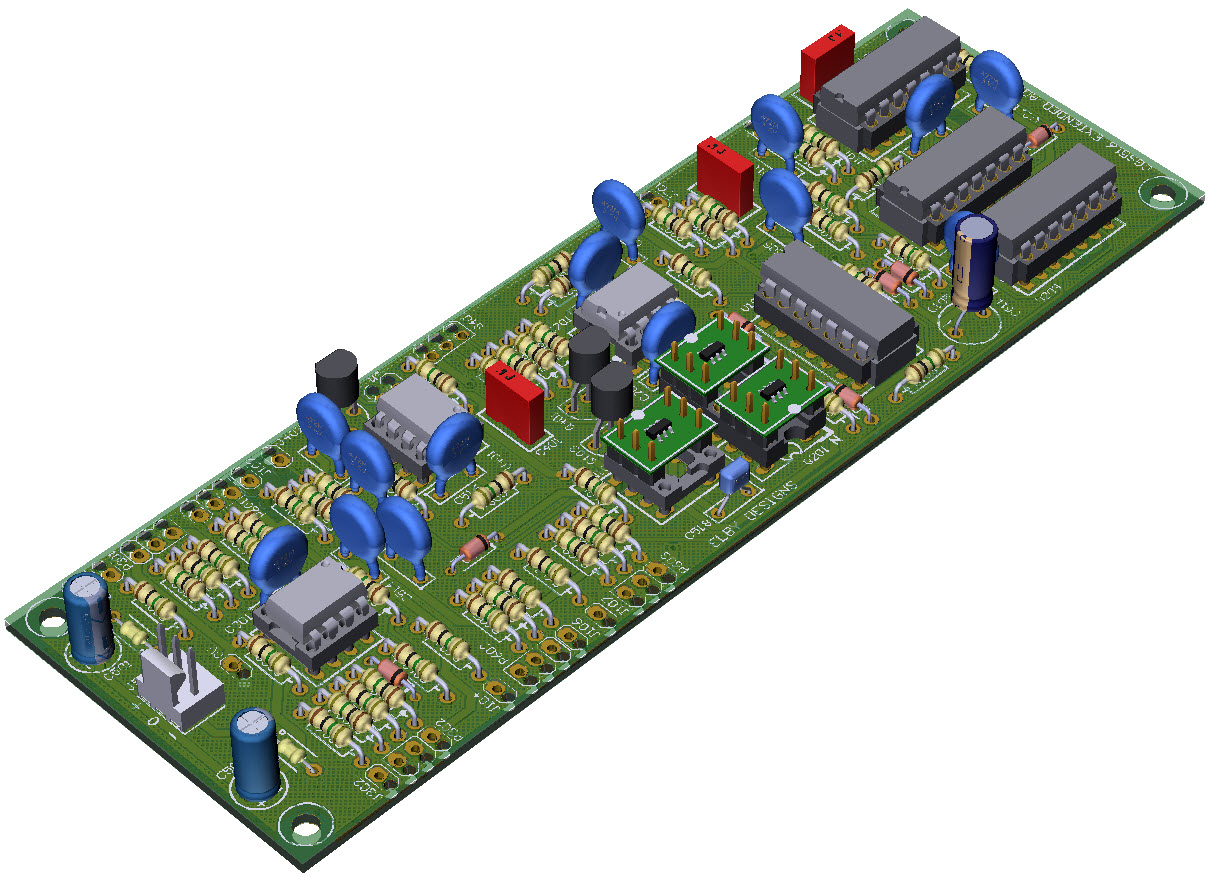

3D Model
Overlay

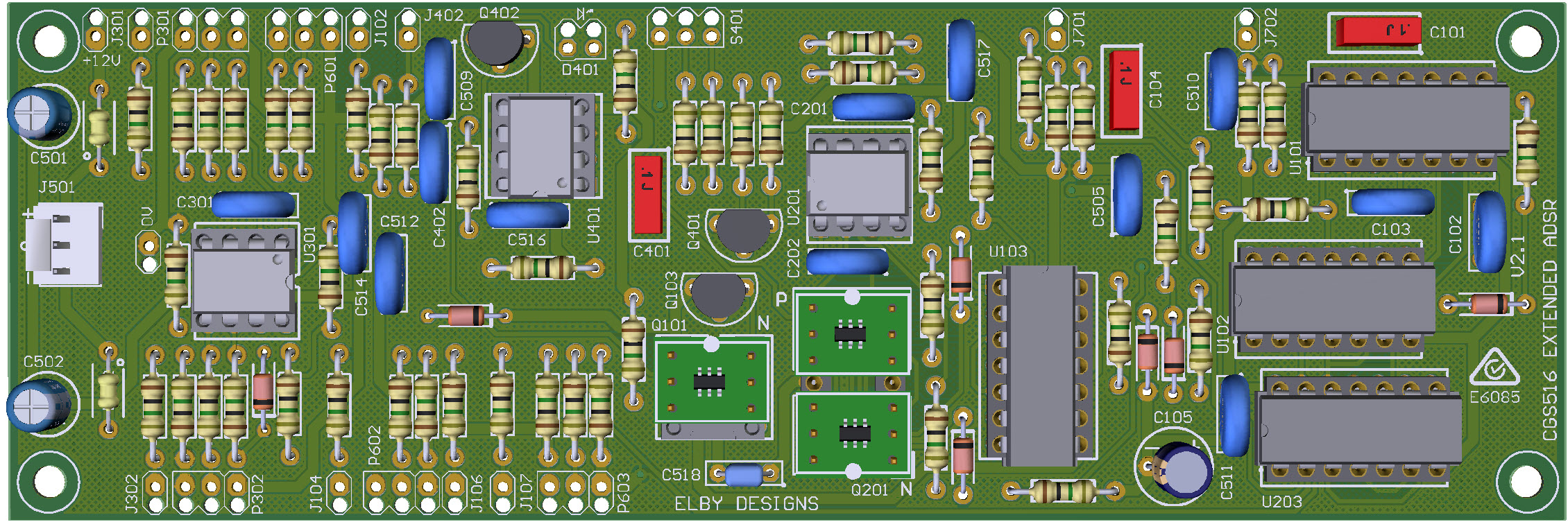

Plan View

Constructors should refer to the Component Overlays along with,
the PCB Bill of Materials for the current value of all components, and
the General Construction Notes for general PCB assembly guidelines.

For optimum performance, the CGS516 requires a matched NPN transistor pair at Q101 and matched NPN/PNP transistor pairs at Q201. Please refer to Dual-Matched Transistors for further details.
