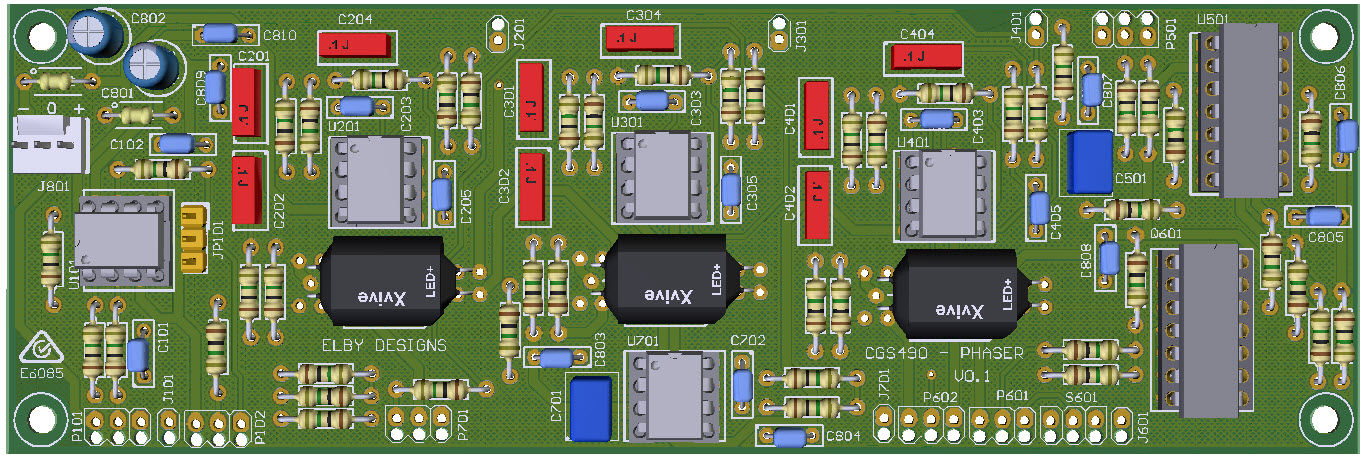

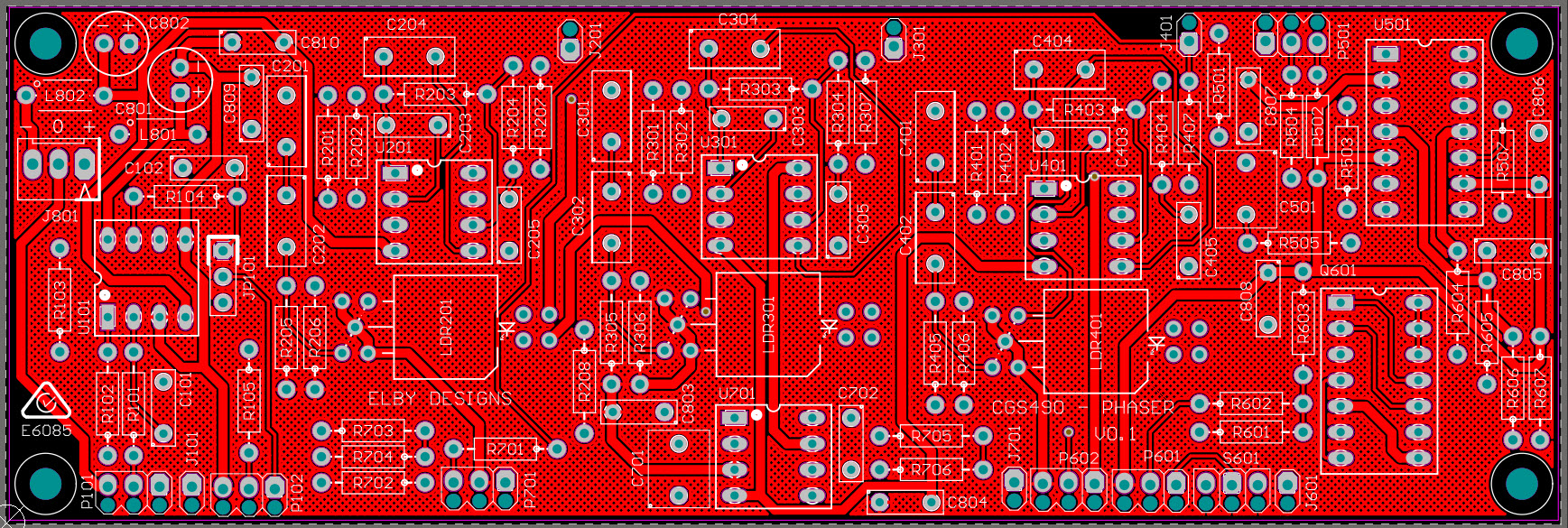

Constructors should refer to the Component Overlays along
with,
the PCB Bill of
Materials for the current value of
all components, and
the General
Construction Notes for general PCB
assembly guidelines.
Jumper JP101 lets you enable and set
the 'mode' of the [FEEDBACK].
With the jumper shorting 1-2 (UP) you will get
-Ve feedback while in the 2-3 (DOWN) position
it will be +Ve feedback.
