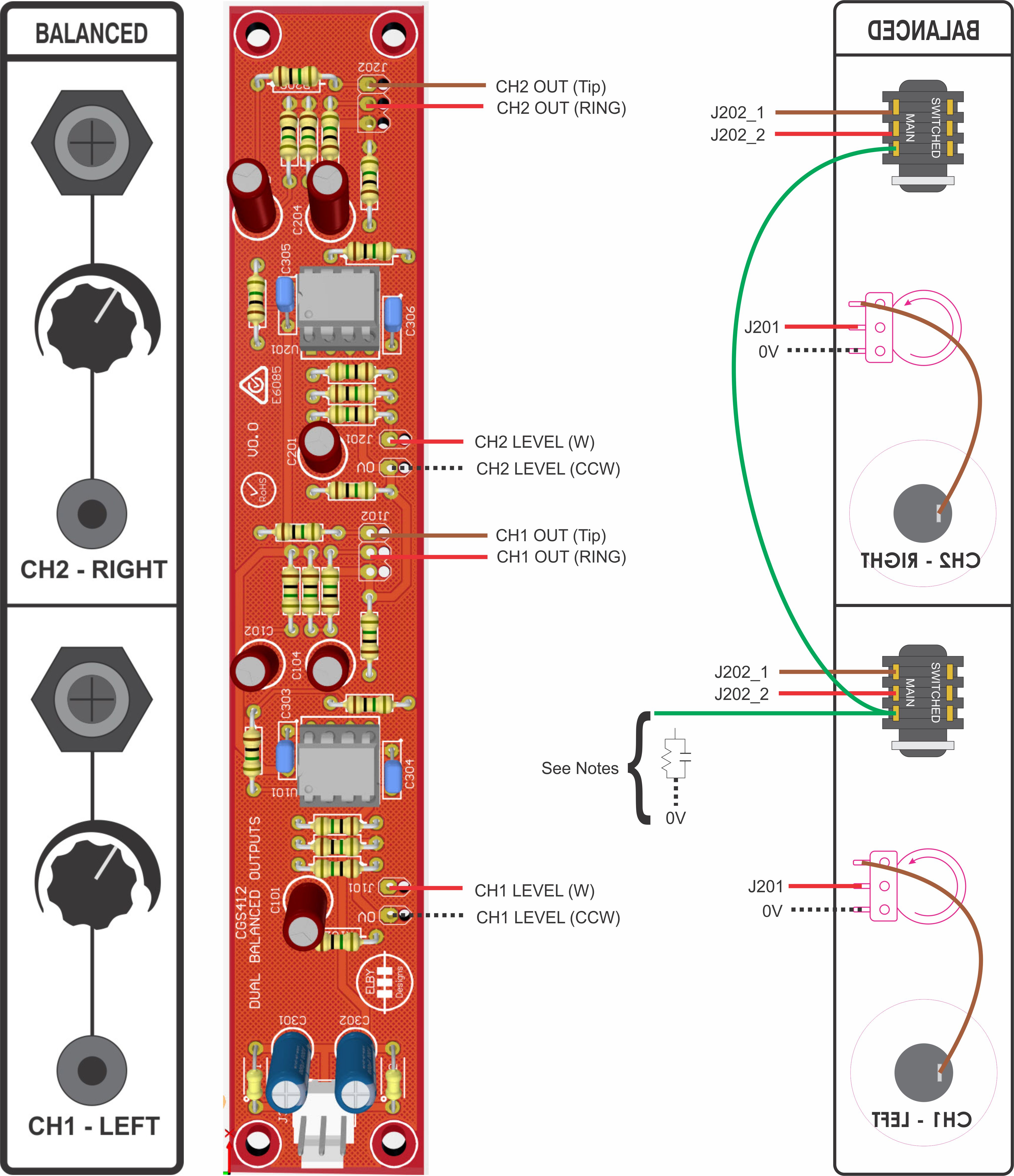

The balanced output jacks shouldl
have their SLEEVE connection terminated to
CHASSIS GROUND. If this is not available then
you may wish to either connect direct to the
0V pad on the PCB or connect it indirectly to
0V through a 150R 1/2W resistor and 100nF
capacitor (wired in parallel).
