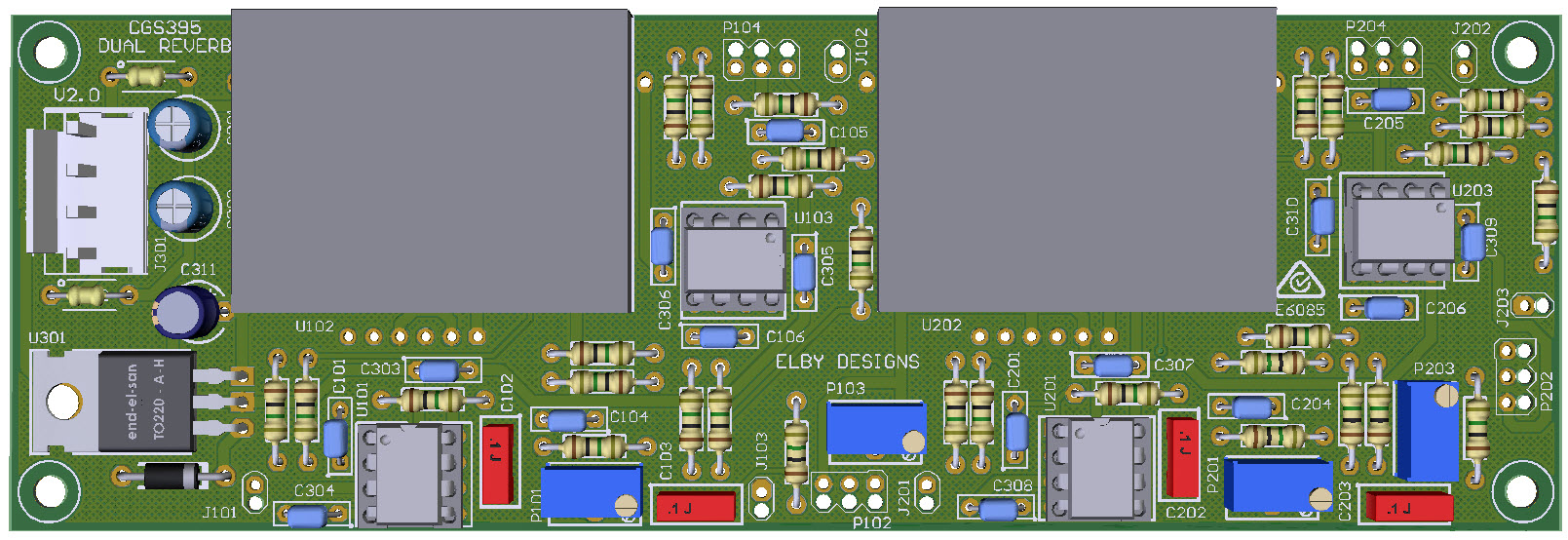

3D Model
This is a basic reverb module
constructed around the Beltron BTDR-2H Reverb
Module.
Mix outputs are provided, allowing the
input/reverb mix to be controlled via a panel
pot.
A feedback function is also provided
for emphasizing the effect, or even for
generating screaming feedback.

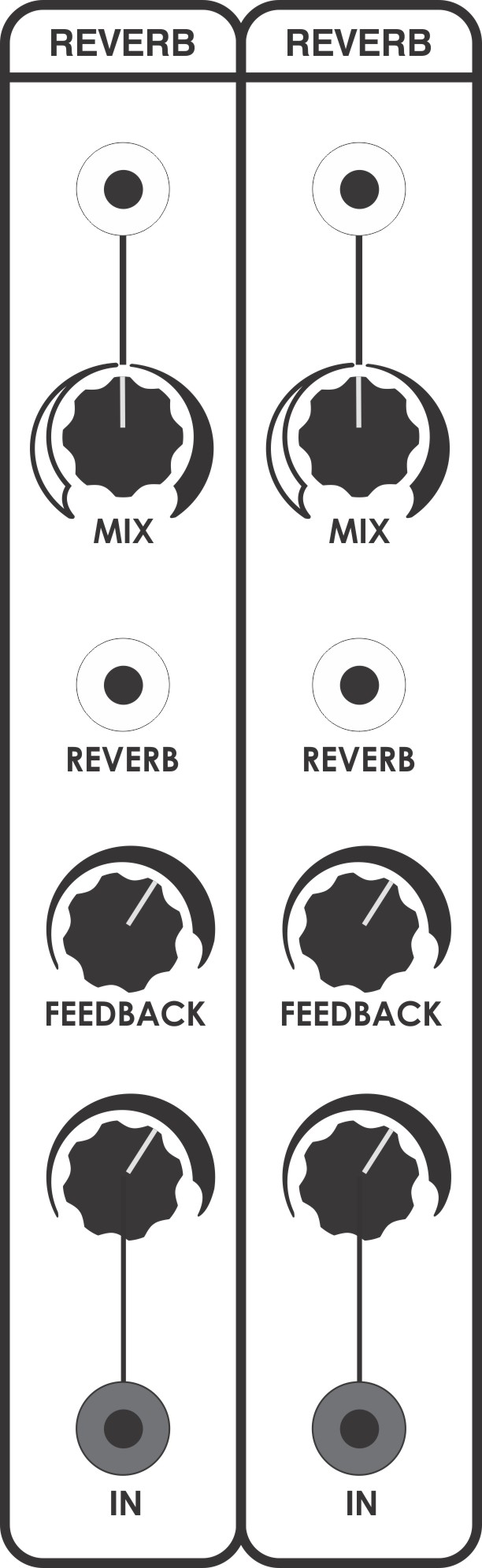

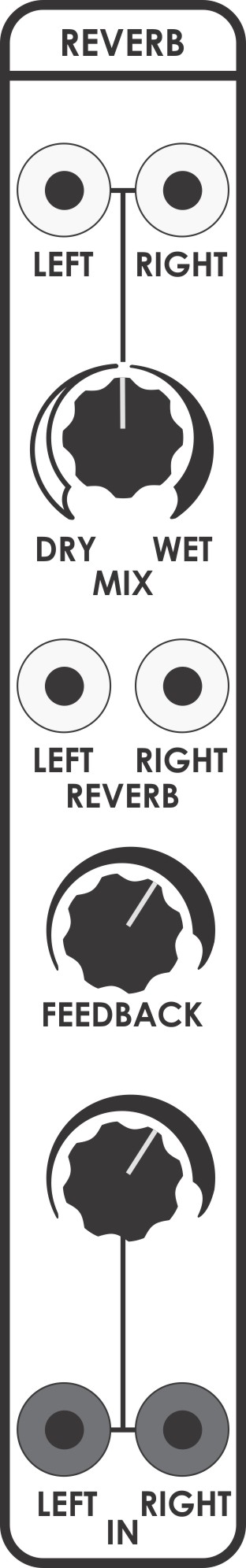

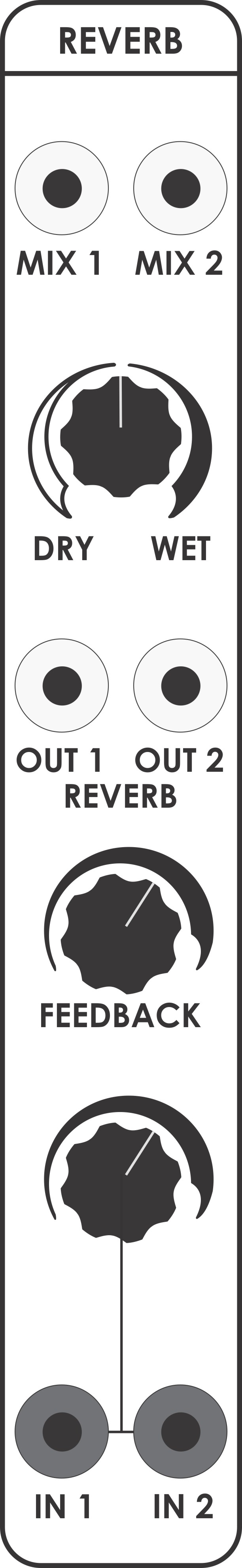

The CGS395 contains 2 identical mono
reverb circuits allowing the user to either
build them as a stereo pair, or as one, or two,
mono units, optionally with differing delay
lengths.
There are 3 variants of the BTDR-2H
which have different decay times:-
|
Variant
|
Decay Time
Seconds
|
Typical Use
|
|
Short
|
2
|
Vocals (1.2s to 2.0s)
|
|
Medium
|
2.5
|
Organ (1.75s to 3.0s
|
|
Long
|
2.85
|
Guitar (2.75s to 4.0s)
|
Video demo of prototype unit.
|
