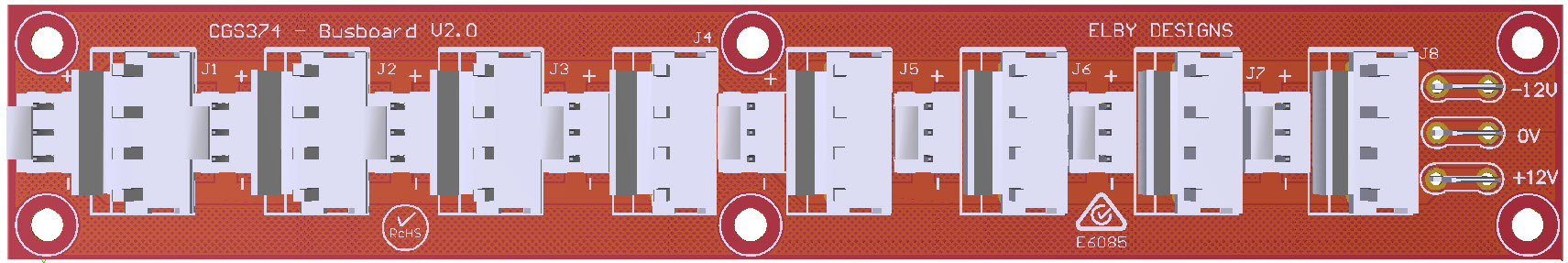

Constructors should refer to the Component Overlays along
with,
the PCB Bill of
Materials for the current value of
all components, and
the General
Construction Notes for general PCB
assembly guidelines.
Our Component Kit includes both 4-way
0.156" connectors and also 3-way 0.1"
connectors. For each position it is
recommended that only one or other be fitted
to allow maximum space between connectors for
easier insertion and removal of power cables.

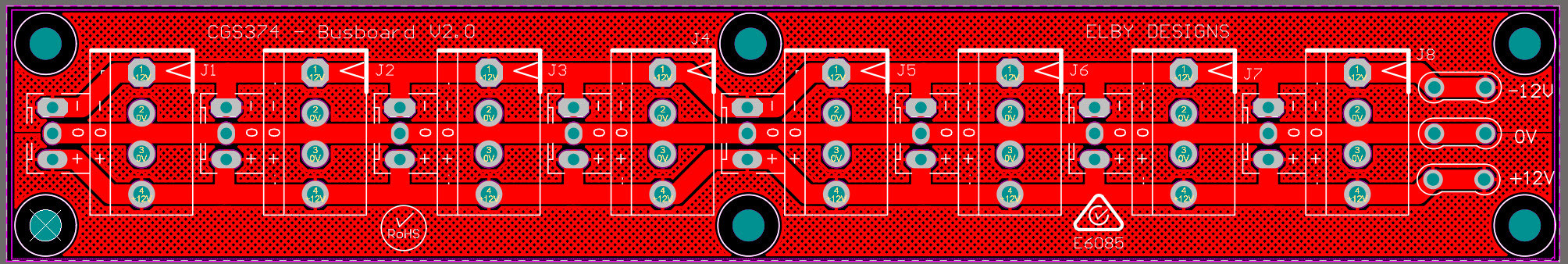

NB: The polarity indicators in the
footprints for J1 thru to J8 are reversed and
should be ignored. The polarity indicators for
the power tabs are correct .
