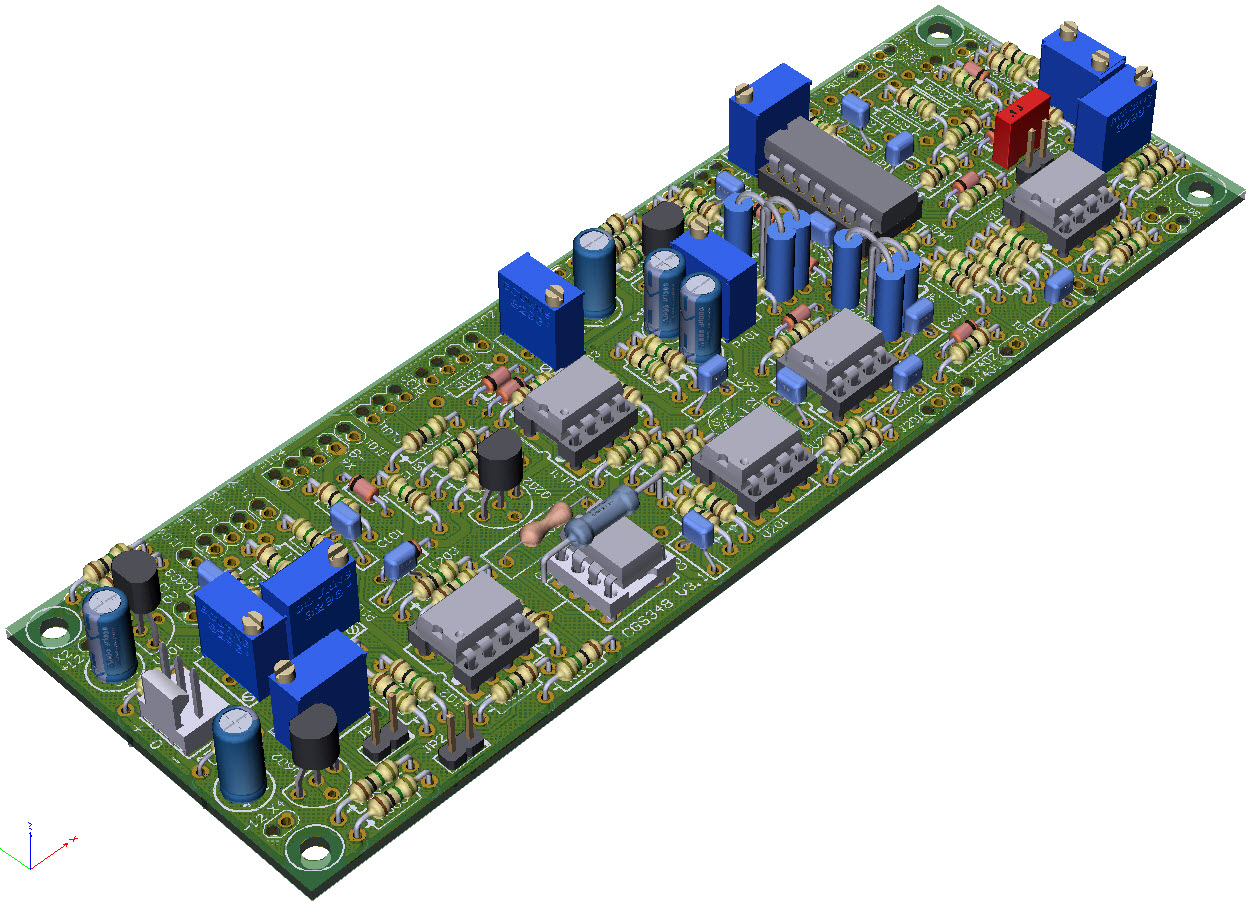

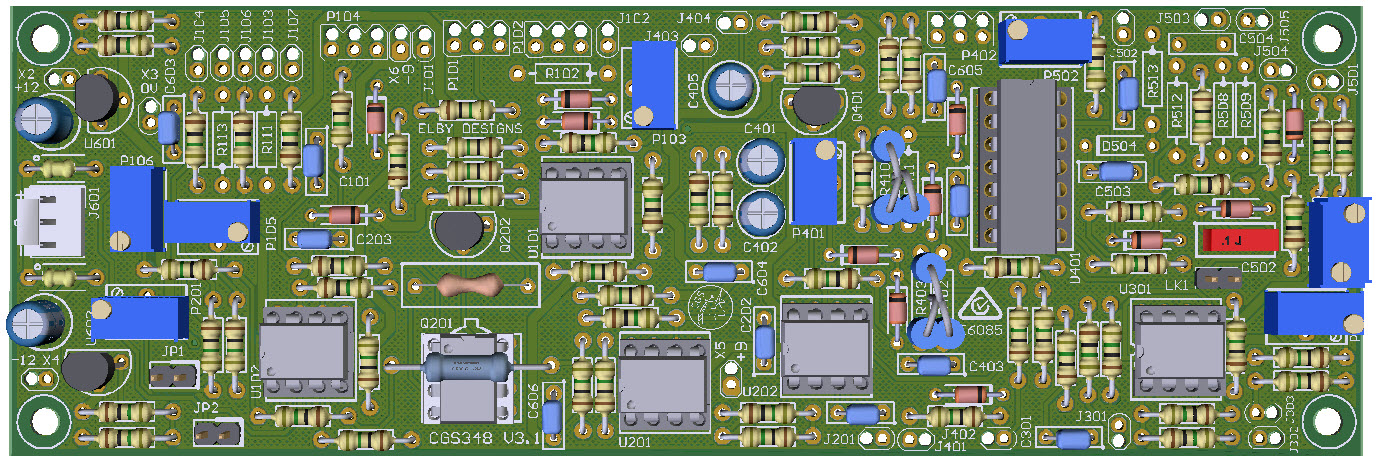

Constructors should refer to the Component Overlays along
with,
the PCB
Bill of Materials for the current
value of all components, and
the General
Construction Notes for general PCB
assembly guidelines.
Modifications
The following modification provides a
better match in the output levels of the
[SINE] and [VARIABLE] waveshapes relative to
those of the [SAW], [SQUARE] and [STAIRCASE]
waveforms:-
- Mount R402 & R403 vertically in
the lower pads of their footprint
- Mount R418 vertically in either of
the upper pads of R402/R403
- Tie the 3 loose ends together and
solder all parts
- Mount R410 & R411 vertically in
the lower pads of their footprint
- Mount R419 vertically in either of
the upper pads of R410/R411
- Tie the 3 loose ends together and
solder all parts
.
