Constructors should refer to the Bill of Materials
for the current value of all components,
and the General
Construction Notes for general PCB
assembly guidelines.

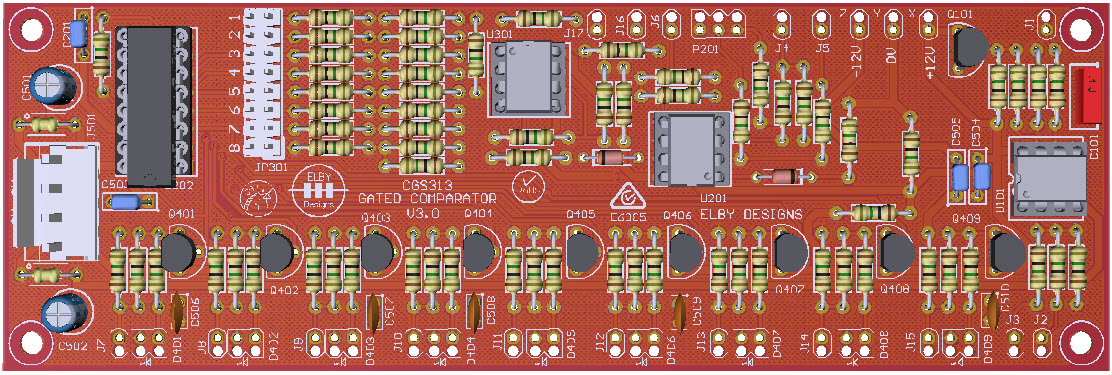

JP301 allows for optional switches to
add the 1st through to 8th bits to the [RANDOM
MELODY]. If links 5-8 are left open, the
melody will be limited to 16 notes. The links
can be either permanently hard-wired (default)
or have jumpers fitted to set the desired
number of bits semi-permanently.
Go HERE
for the Klee
Build Guide.
