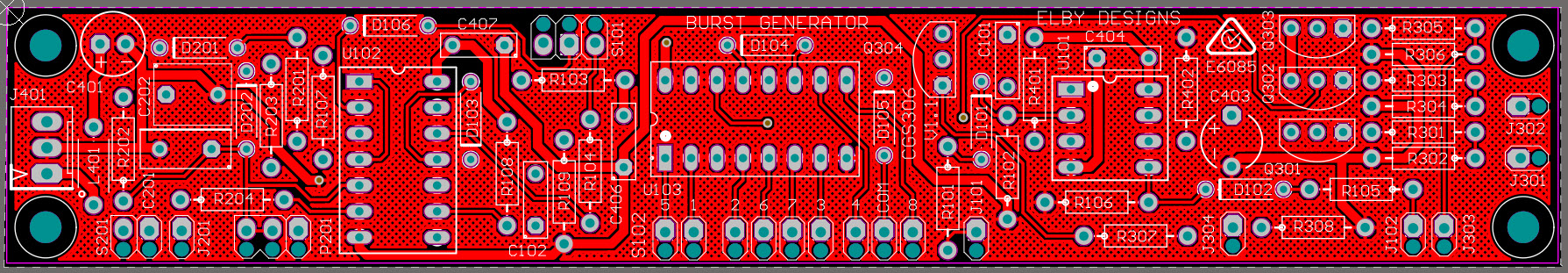

3D Model of PCB Assembly

	3D Model	Overlay	PCB Plan View	Schematics
PCB

Constructors should refer to the Component Overlays along with,
the Bill of Materials for the current value of all components, and
the General Construction Notes for general PCB assembly guidelines.

A PCB error requires a small wire link to be fitted between the lower pins of R107 and R203 as indicated on the overlay.
