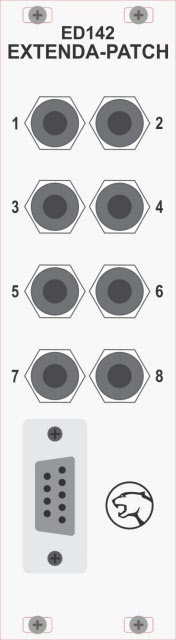

When selecting your ED142 first decide if you are using a DB9M-DB9M, DB9F-DB9F or DB9M-DB9F cables and then select the appropriate ED142s.
The ED142 can be supplied with either all 3.5mm jacks or all 4mm banana jacks. Please email us if you would like a mix of 3.5mm and 4mm jacks.
We can also colour-code the jacks to help identify AUDIO, CV and LOGIC signals. NB: We recommend placing LOGIC signals on a dedicated ED142 to prevent contaminating AUDIO/CV signals
ED142 Datasheet and Build Guides
