4U Enclosures

From
ex Shipping kg
Add to cart
  • Description

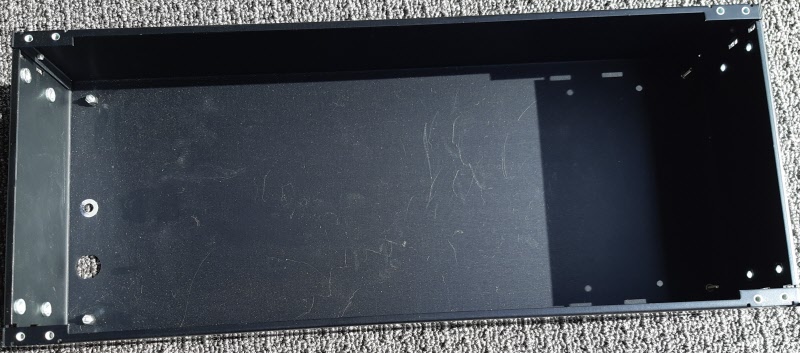

4U 84HP Boats for BOCGS and other SERGE panel designs. These are custom made boats based on the BUD AC423 specifications.

Features include:-

  • Pre-drilled base for installing our CGS391 Mounting Kits to mount the associated PCB Set.
  • Black anodised finish
  • A cut-out for a 4-pin MIC connector providing access for power in
  • A cut-out for a 4mm binding post for a CHASSIS GROUND connection
  • Accepts our 4U Rack Mounting Kit allowing the boat to be mounted into a standard 19"-style housing

Power distribution is done using the CGS391 Power Set. Mechanical Details

End Cheeks - Our high-quality End Cheeks provide a neat cosmetic finish to our boats and come in 3 size formats:

  1. 4U for a single boat. These End Cheeks allow the boat to sit at an inclined angle from the horizontal that presents the panel and its controls at a more user-friendly angle that works for both standing users and seated users
  2. 8U for 2 boats. The 8U is an extended End Cheek that retains the 4U profile and allows for a 2nd boat to be positioned above the bottom boat. It is also inclined at a slightly steeper angle that presents the upper panel in a 'closer to vertical' orientation that again makes accessing and viewing the controls more user-firndly
  3. 12U for 3 boats. This is the original End Cheek supplied by ELBY Designs that was designed for the BoCGS family (BOG, MARSH and SWAMP). Again, the 3rd boat is mounted at an even steeper angle such that the whole system presents the panels in a curved profile that maintains the ease of access while also minimising the desktop footprint.

Multiple systems can be sat side-by-side and as the 3 size formats have the same profile, will sit together and maintain an aesthetically clean unit.

Rack Mounting Kit - This kit provides hardware to allow your 4U Boat to be rack mounted. We offer 2 versions which support (1) original 7" x 17" panels, (2) 4U 84HP EuroRack compliant panels such as our BoCGS and Voltron designs.
