3D Model	Overlay	Plan View

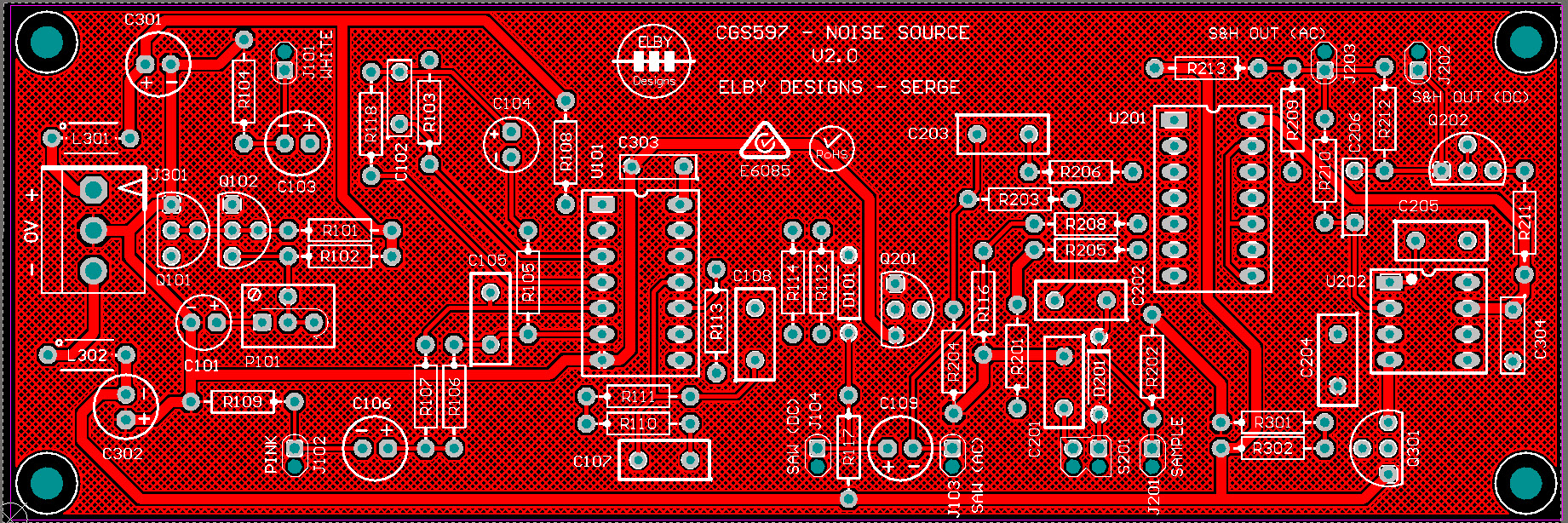

CGS597 PCB

Constructors should refer to the Component Overlays along with,
the PCB Bill of Materials for the current value of all components, and
the General Construction Notes for general PCB assembly guidelines.

ADDENDUM

• C304 should be soldered on the underside of the PCB across pins 4 & 7 of U202
• C305 should be soldered across R301 with +ve to the left-hand leg.
