CGS579
Ring Modulator

Let's Go Shopping

vcf

3D MODEL

The CGS579 is unique among ring modulators, for providing a means to smoothly voltage control the index of modulation, from 0% modulation of the signal by the carrier, through to 50% modulation (otherwise known as amplitude modulation) and 100% ring modulation with excellent carrier rejection.

The possibilities are endless for musicians interested in programming subtle changes in harmonic content created through the modulation of two signals by each other.

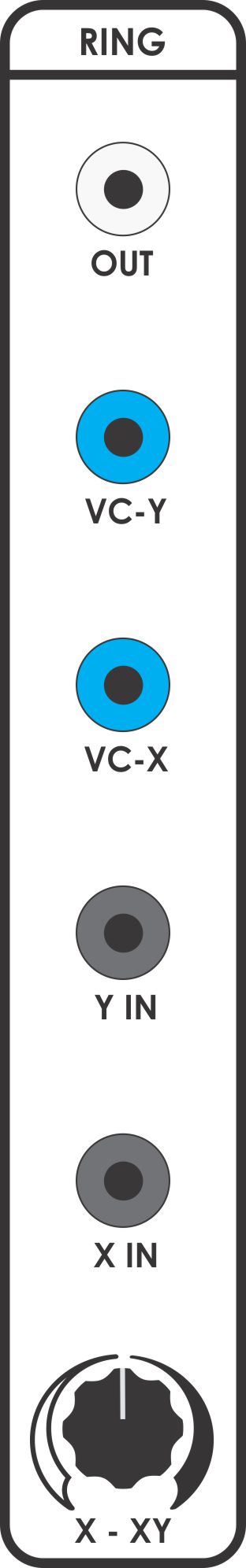

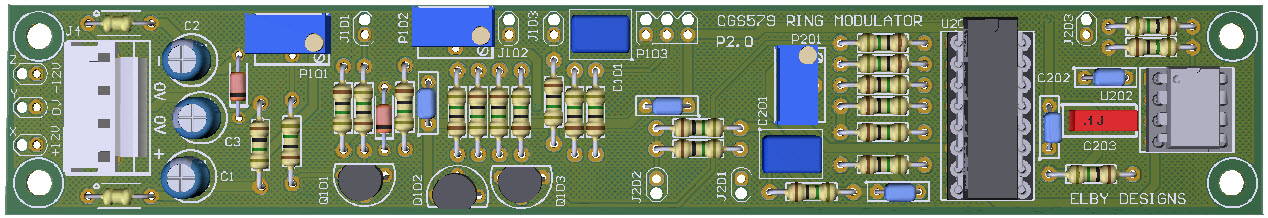

PCB Dimensions: 1" x 6" with 3.2mm fixing points 0.15" from the edges
Power Consumption: +12V @ -12V @
