CGS509
Dual Transient Generator
Let's Go Shopping

The CGS509 is a Transient Generator with voltage controllable rise/fall times. It is a scaled down version of the CGS114 Universal Slope Generator and provides some of the basic functions that can be patched on the CGS114 but occupying less panel space in your system and freeing up the CGS114 for other functions.

Common uses for the CGS509 are:-

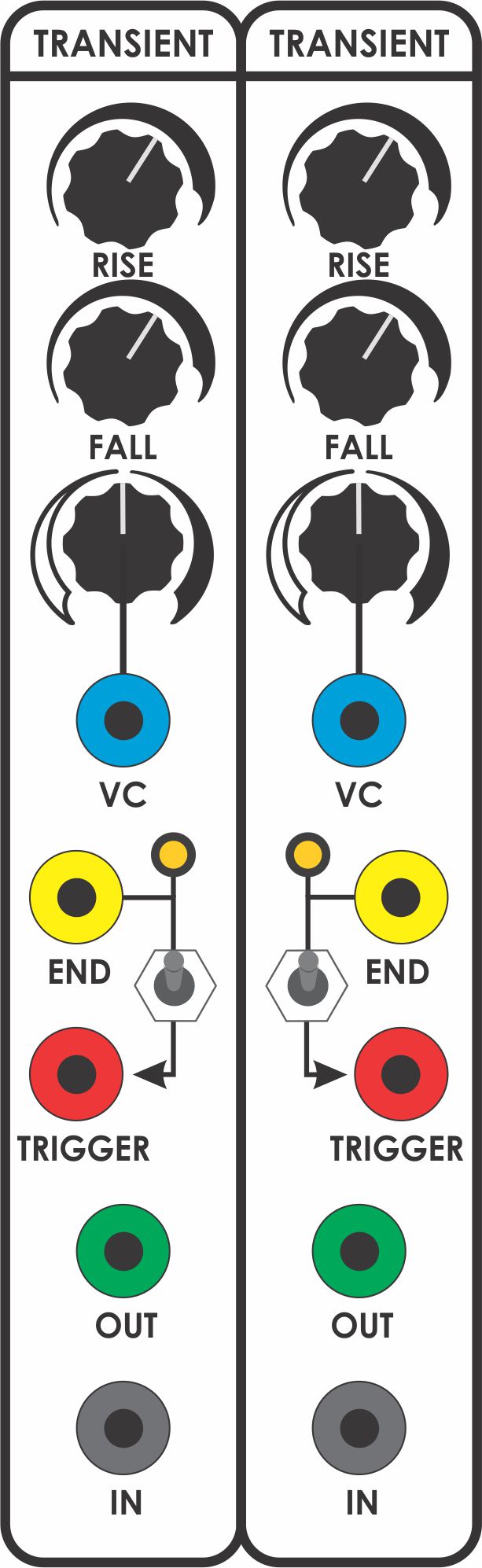

  1. As a simple 'AR' type envelope generation: apply a trigger to the [IN] jack to initiate an 'AR' envelope with a variable shape from 'slope' through 'triangle' to 'ramp'
  2. As a voltage-controlled low-frequency oscillator: With the [IN] jack unpatched the CGS509 will cycle continuously, The [DC] jack gives you a DC output (0V to +5V),
  3. As a voltage-controlled clock (especially suitable for clocking the CGS59 Sequencer Programmer and the CGS86 Touch Sequencer). With the [IN] jack unpatched the CGS59 will cycle continuously. The [END] jack provides a LOGIC clock pulse (0V to +5V) with a variable duty-cycle based on the [FALL] and [RISE] settings.

When in 'oscillator' mode the frequency range extends from a high around 2.5kHz to a cycle-period in excess of 4 minutes.

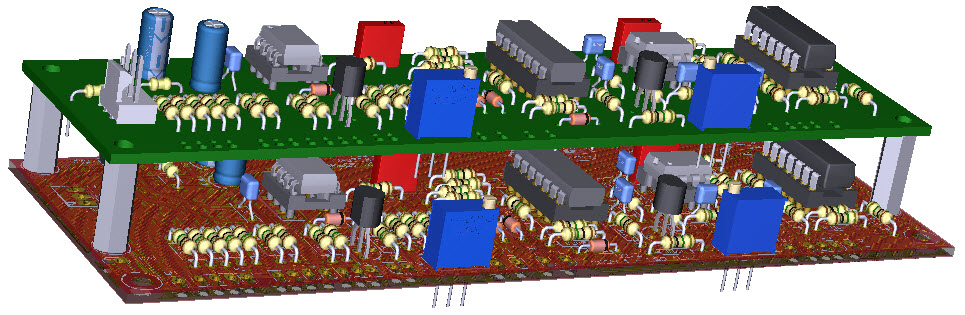

PCB Dimensions: 2 " x 6" with 3.2mm fixing points 0.15" from the edges
