The Transcendent 2006

UNDER DEVELOPMENT



The Transcendent 2006 is a (soon to be available) re-release of a design based on the original Transcendent 2000 in ETUI, the copyright of which is now owned by Everyday Practical Electronics.
(www.epemag.co.uk).

Block Diagram

ADSR

Keyboard

LFO

Noise

VCA

VCF

VCF-AD

VCO

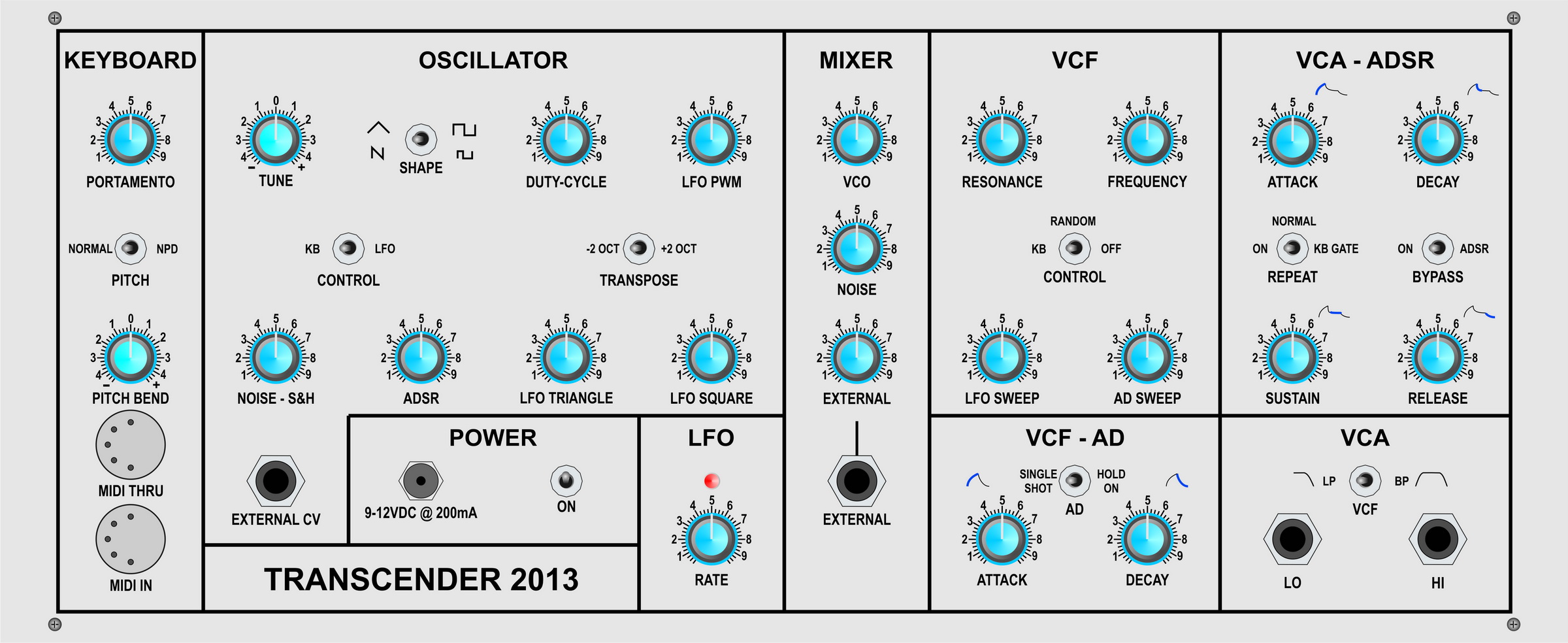

The design is being re-released as a 4U 84HP unit and will include an optional front panel.
In addition the unit will be offered as a fully assembled and tested unit.

The 4U unit will not, of course, include a keyboard which is been replaced by a CV interface.
It is planned to release a separate small keyboard unit in the future that will interface
with this and other CV controlled synths.

Please note that the above schematics are the first transcripts of the original design
and may still contain errors.
