Let's Go Shopping

EuroSynth Power Supply
and Busboard Solutions



A selection of power supply kits and modules to suit most needs

The following products do NOT involve mains wiring or circuitry
and are suitable for most CCK skill levels.

A PCB-assembly power unit providing +12V @ 1.2A and -12V @ 600mA.
Requires approximately 45mm height clearance.
Powered from a 15VDC external power supply (linear or SMPS).
Output connections are via 1/4" tabs.

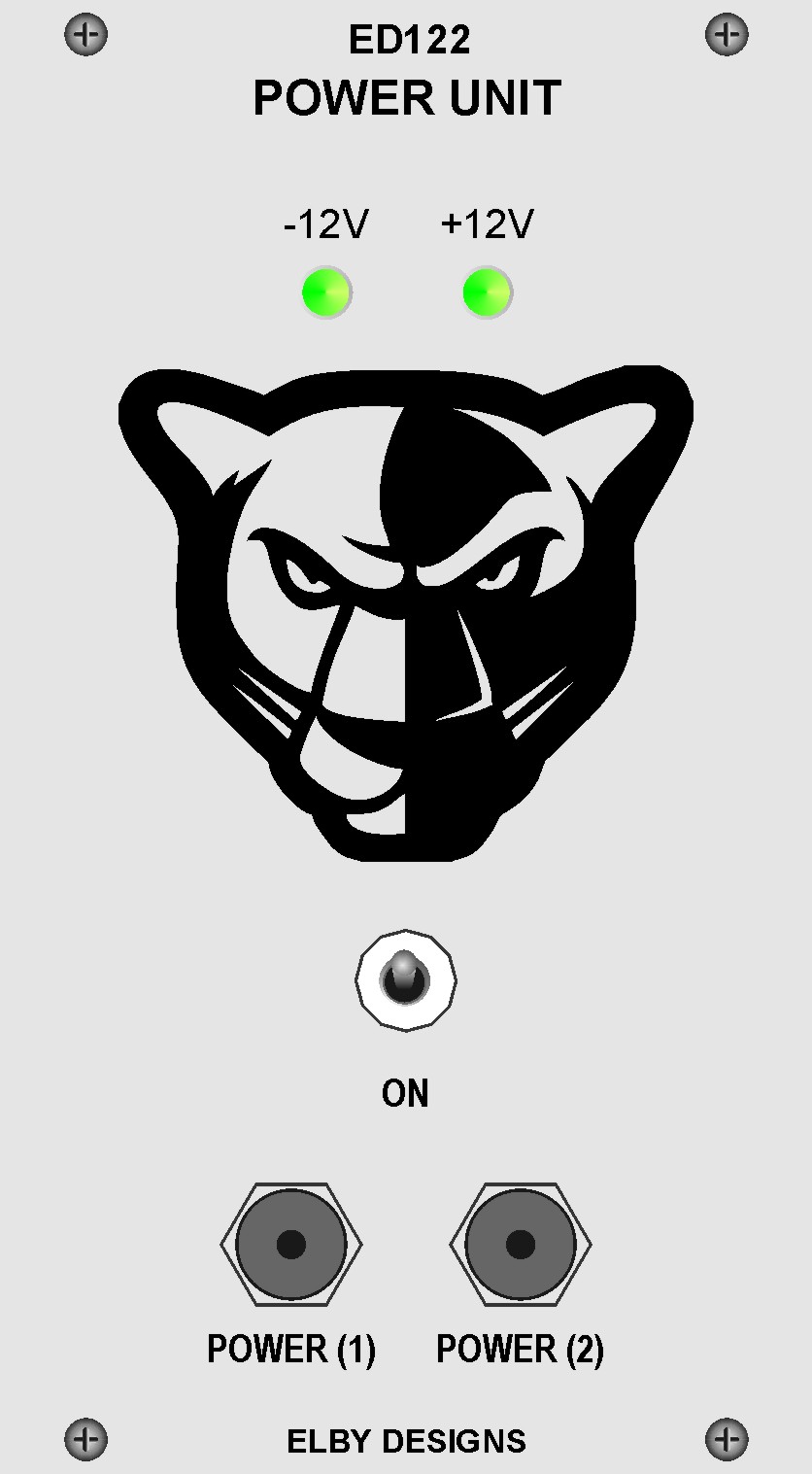

Our 4HP Power Panel or Power Plate are recommended as solutions for getting power in to the ED122 Power Unit
A rack-mounting power module providing +12V @ 1.2A and -12V @ 600mA.
Requires approximately 45mm depth behind the front panel.
Powered from a 15VDC external power supply (linear or SMPS).
Output connections are via 1/4" tabs.

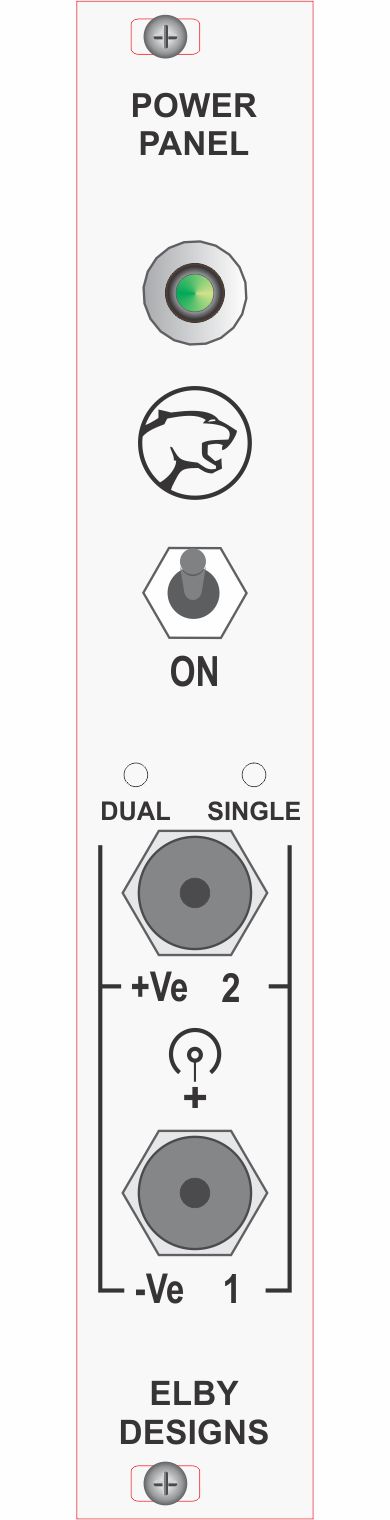

A 4HP rack-mounting power panel provides user access to the DC in socket, ON/OFF switch and power status LED.
Can be supplied in either of 2 configurations:-

  1. SINGLE MODE - This mode is used when the system has an internal DC-Dual DC power supply such as our ED111, ED126 or ED705. The external supply for these boards is 15VDC.
  2. DUAL MODE - This mode is used when the system only has passive busboards such as our ED123 or ED704. Two external supplies are used and they must both provide a well regulated +12VDC @ 2A and have floating outputs.

Output connections to the busboard are via flying leads terminated with 1/4" tabs.

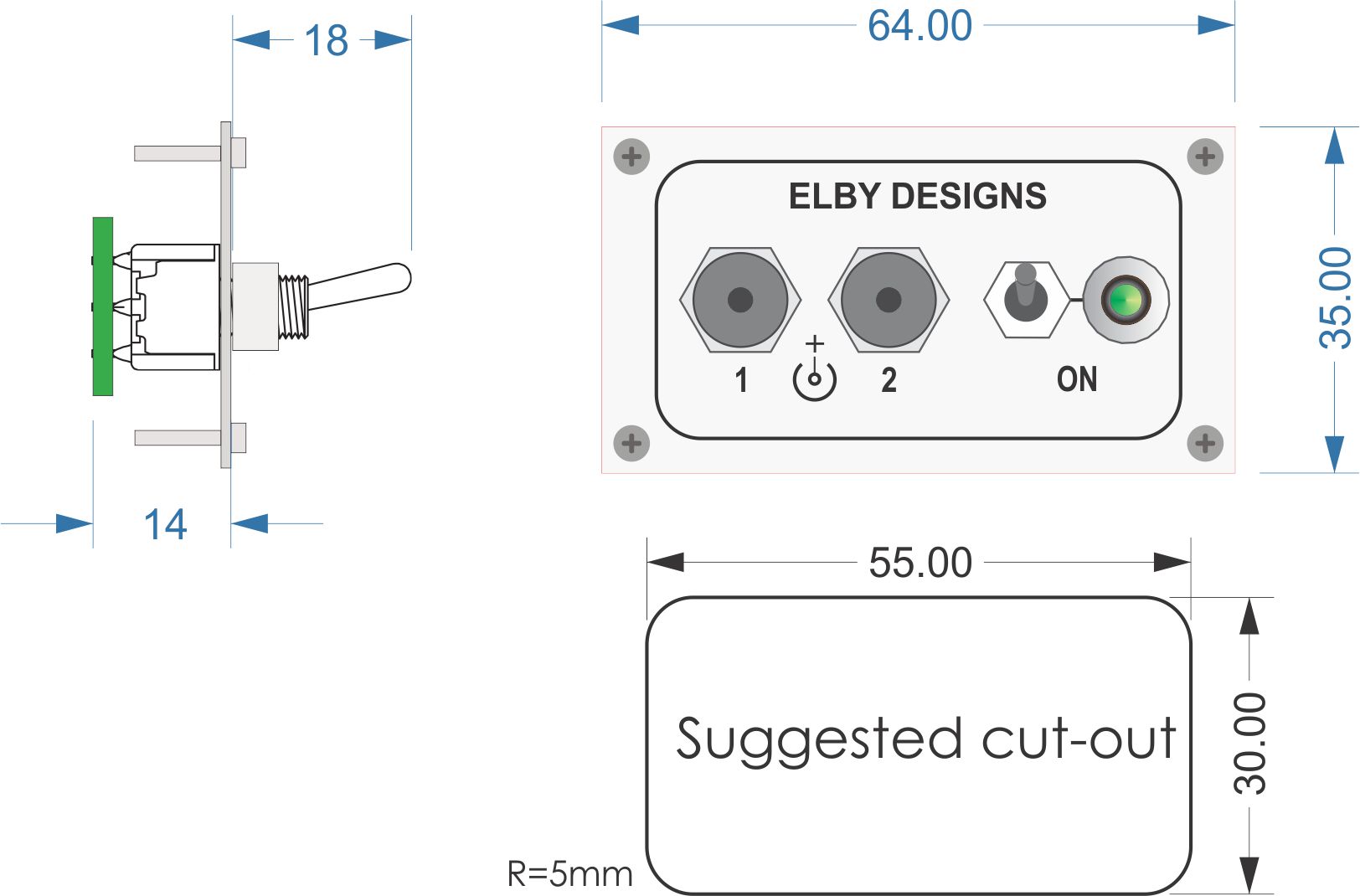

A small (64mm x 35mm) Power Plate can be mounted on the back or side of your case to provide user access to a DC in socket, ON/OFF switch and power status LED.
Powered from a 15VDC external power supply (linear or SMPS).
Output connections are via flying leads terminated with 1/4" tabs.

This adaptor connects to a power output on any busboard and provide a 5V @ 500mA supply. The adaptor has a pass-thru mode that allows a module to be connected to the same power output.

Two options are available via an onboard jumper:-

  1. Module-Only: This provides 5V only to the module connected to the adaptor. This helps isolate the module from any noise on the busboard 5V rail as well as reducing noise being fed back on to the busboard 5V rail.
  2. Loopback: This, in addition to feeding power to the connected module, also feeds the 5V back on to the busboard 5V rail for powering other 5V mdoules. Only ONE module should ever be connected to the busboard in this mode. If your system has multiple busboards then you can attach a EURO-5V-loopback to each busboard thus maximising the power rating of the overall 5V supply
This small low-profile power unit provides a 5V output with a loading capacity of up to 3A. Ideal for heavy-load modules like the Metasonix R55 which have a high initial warm-up loading (inrush current).
Designed to run from the systems 15VDC supply but can run from a separate supply as low as 9VDC.
This small low-profile power unit provides +12V @ 2A and -12V @ 750mA or -12V @ 1.5A and runs from 12VDC @ 4A. Can also be supplied to deliver +/-15V when using a 15VDC brick.
The outputs from this unit are filtered SM.

This small unit is ideal for a 3 boat BOCGS or Serge system providing +/-12V or +/-15V. This unit is also ideal for small modular systems or any design requiring a dual rail supply. Available as a kit (involves some SMD), pcb assembly or a housed stand-alone unit.

The PSU-10 runs from a 12VDC or 15VDC (depends on configuration) external laptop-style brick. The kit/pcb assembly utilises 1/4" spades for power in and 3x 4-way MOTM style connectors for power out. The stand-alone versions terminates the input connection with a 2.5mm DC socket and the output connections with 3x 4-pin MIC connectors.

All build options support up to 3A on the positive rail while the negative rail can be configured for 600mA or 2.5A

The PSU-10 can also be configured for a variety of different rail voltages including asymmetrical rails.

A small module that is inserted inline with a modules power cable and provides and adjustable delayed ON for the +/-12V rails.

Ideal for modules with a high inrush current, helping to ensure that the main power supply can start up cleanly.

Will support power rail loading up to 1A and has an adjustable delay period up to 10 seconds



The following products involve mains circuitry
and/or wiring and are supplied as OEM.
These MUST only be handled by skilled electricians

A more sophisticated dual-regulator circuit recommended for bigger systems
This kit lets you construct a mains AC to pre-regulated DC power supply module
A complete self-contained AC-DC power module. Supports 115VAC/230VAC supplies and incorporates a dual high-quality regulated DC power suppply
A complete free-standing AC-DC power module.
Has a wide-range AC input (100VAC-240VAC) and delivers +/-15VDC @3A per rail.

EuroSynth Busboards

Our Euro-Synth busboards offer a range of both powered and non-powered busboards for Euro-Synths and
have been tailored to fit seamlessly in to our Studio 500 Series of Euro-Synth rack systems.
All of the busboards use a common footprint (205mm x 1001mm) allowing for easier interchange of boards.
The busboards fit neatly in to a 3U 42HP sub-section of your rack and are easily linked together to provide
larger power distribution and, optionally, increase power capacity.

Please refer to 'Recommended Power Distribution Configurations for the Studio Series of Enclosures'
for recommended combinations of our powered and passive busboards

Module
Title
Description

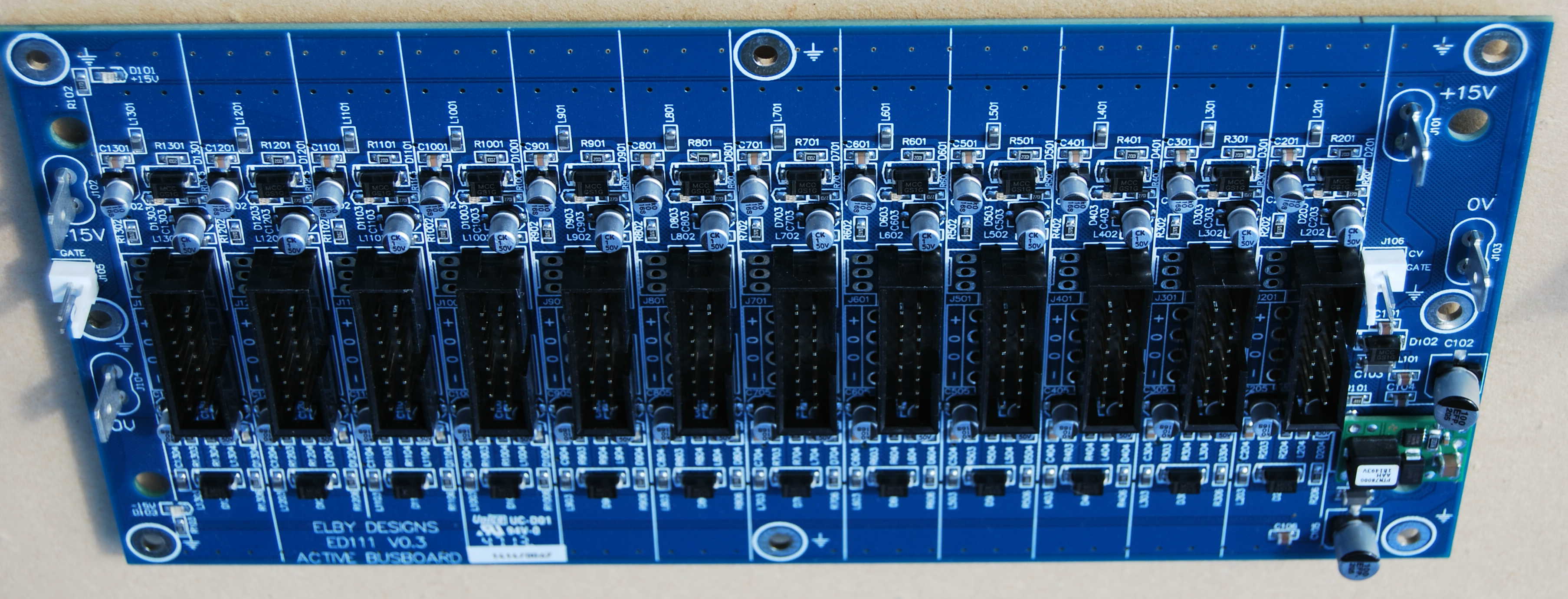

Active Linear Powered Busboard

This busboard provides 12 independently regulated module outputs.
Each +12V outlet can deliver over 500mA to its modules.
Each -12V outlet can deliver up to 300mA to its module although the total loading on the -12V rail across the whole busboard must be less than 700mA.

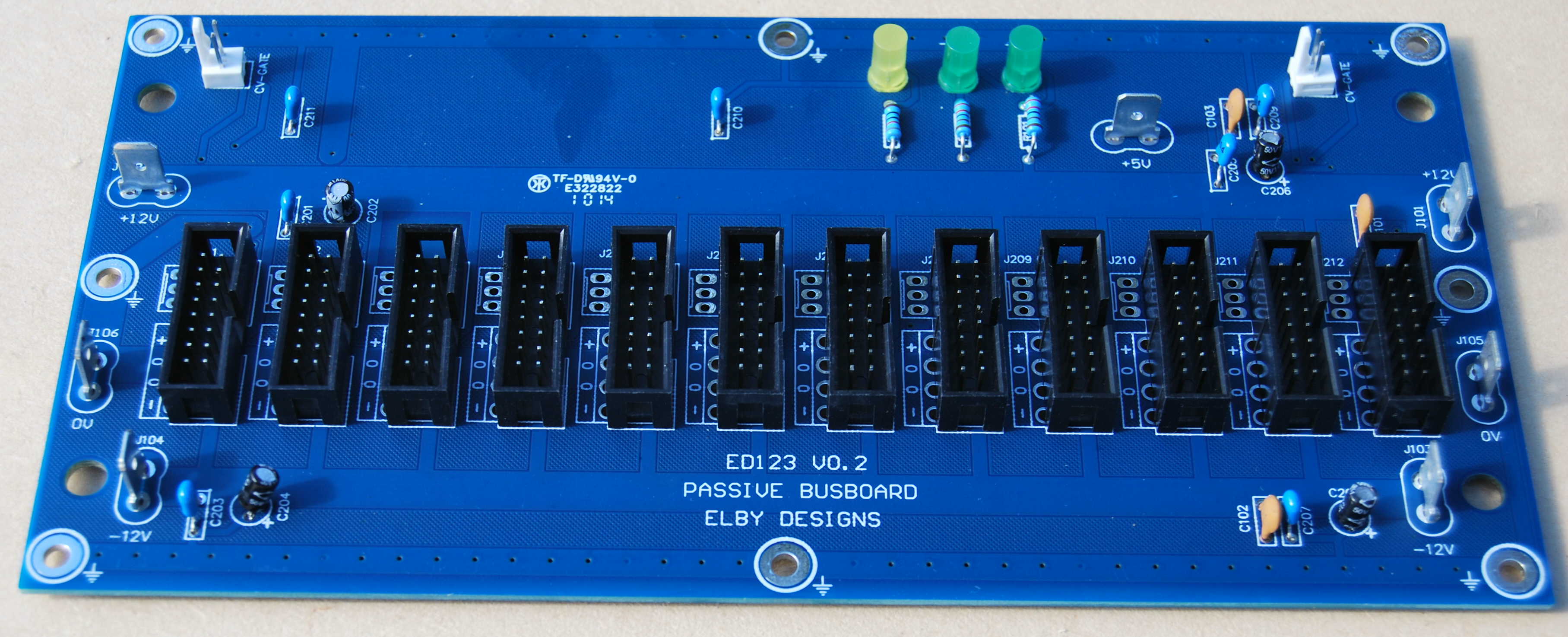

ED123

DISCONTINUED
See ED704

Passive Busboard
12x passive module outlet points. The ED123 is used to increase the number of modules that can be installed in to a system. Requires a well regulated +/-12V supply.

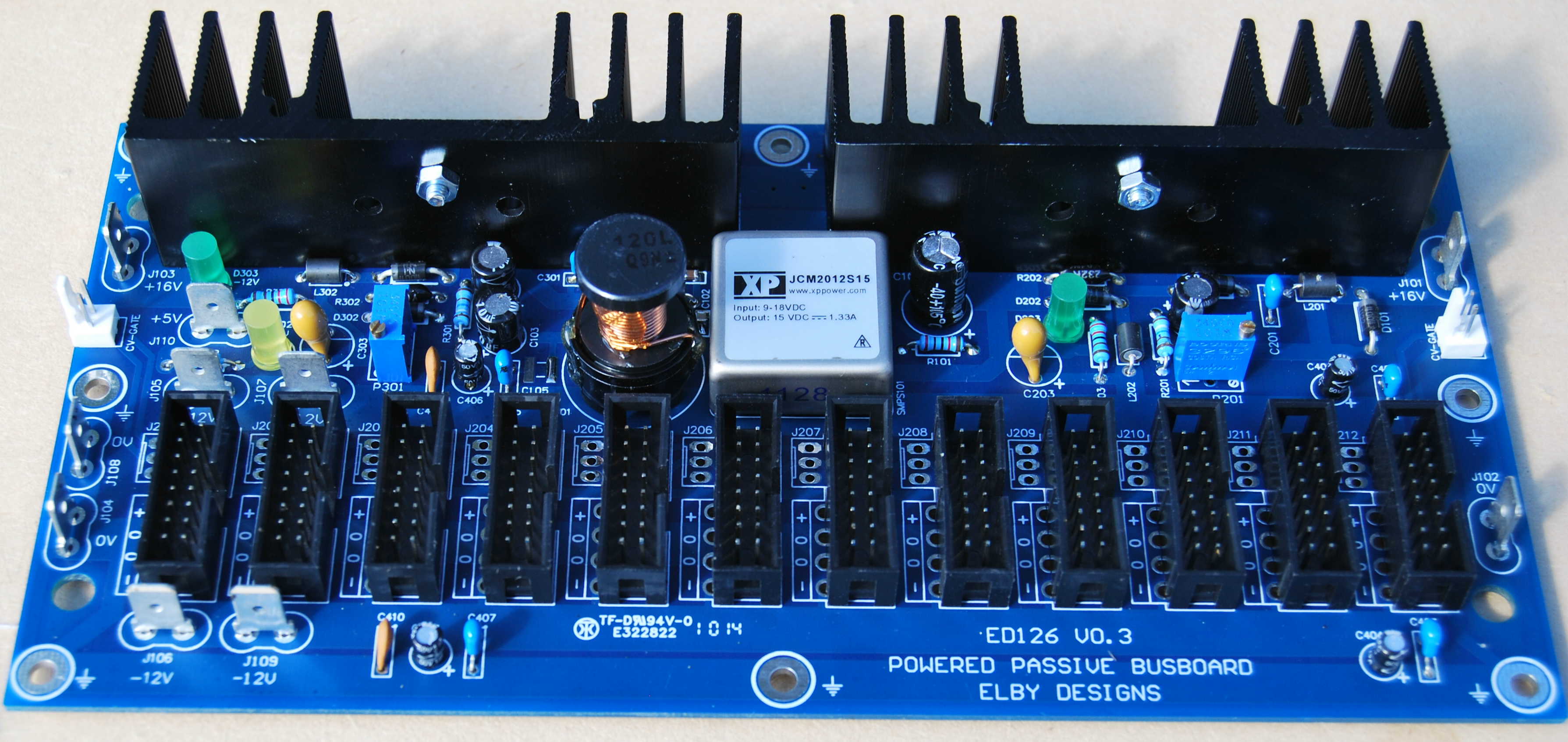

ED126

DISCONTINUED
See ED705

Linear Powered Busboard

The ED126 combines the ED123 with a linear regulated supply providing +12V @ 1.2A and -12V @ 1A.

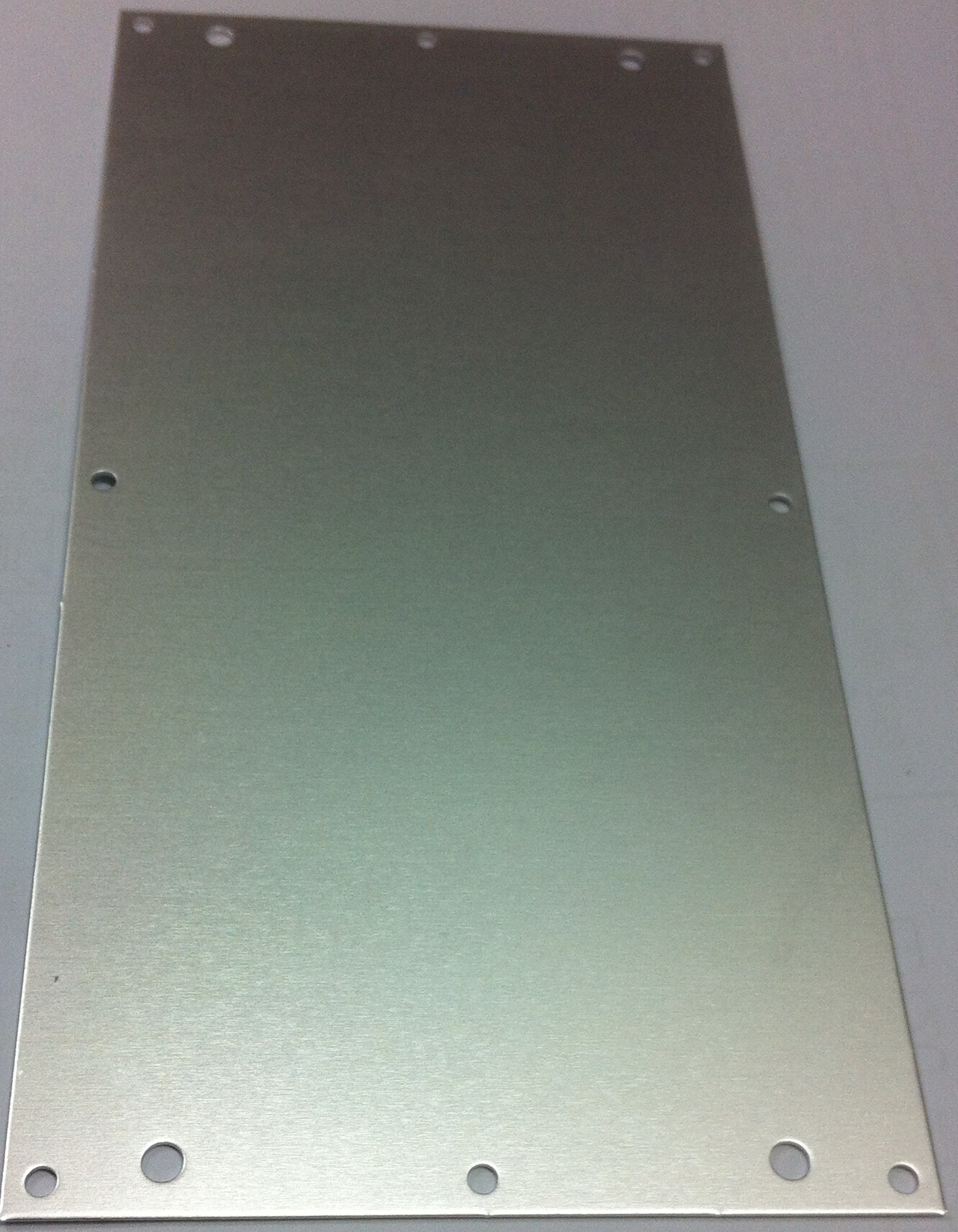

Busboard Carrier Plate
Designed to reduce the number of mounting points required to install our busboards in to a custom case and to also provide a supplementary heatsink for the ED111 Active Linear Power Busboard. Does not fit the ED703.
Skiff-friendly Passive Busboard
22x low-profile module power outlets. Installed height is less than 16mm.
Requires a well regulated +/-12V supply.
Skiff-friendly Passive Busboard   12x passive low-profile module outlet points. The ED704 is used to increase the number of modules that can be installed in to a system. Requires a well regulated +/-12V supply.
Skiff-friendly Powered Busboard   The ED705 combines the ED704 with a linear regulated supply providing +12V @ 1.2A and -12V @ 1A.


Assembly guide and usage notes for 4HP Power Panel

Can I parallel power supplies to gain more power?

DC Distribution Systems - A discussion

Powering multi-boat systems

Controlling Earth Loops
