The EuroSerge
Portable System
Let's Go Shopping

Two portable system configurations are offered to be used separately or together.
Combined, they form a quad out, full featured, live rig.

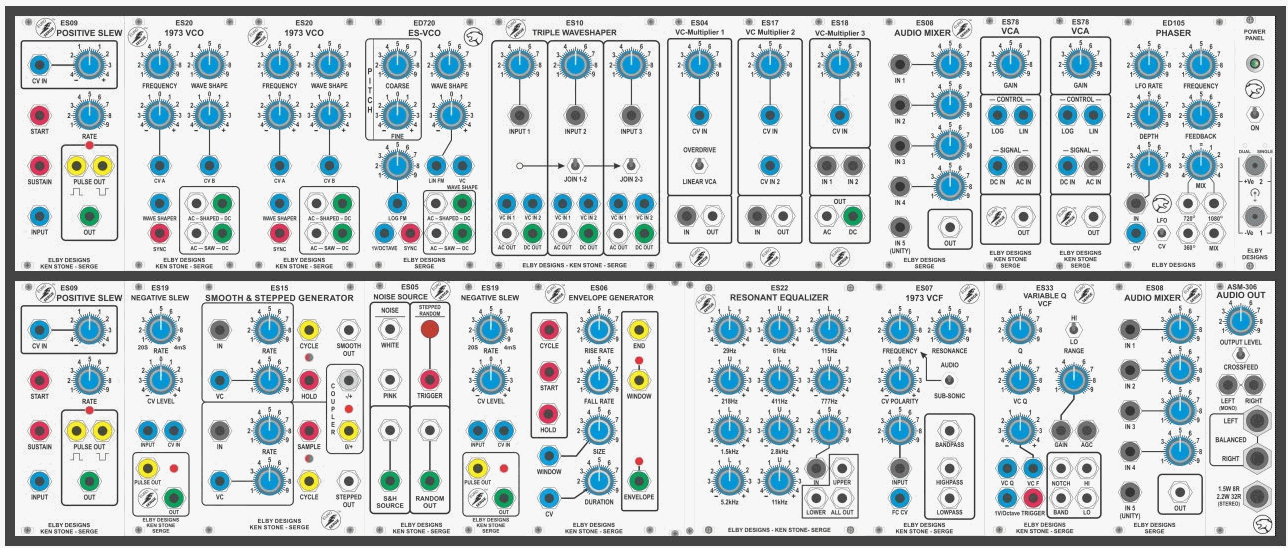

Row 1: ES09, ASM324, ASM324, ES20, ES20, ES20, ES10, ES18, ES17, ES04, ASM324, ES06

Row 2: ES09, ES19, ES15, ES05, ES19, ES22, ES07, ES07, ES08, ES08, ASM306, Power Panel



The Portable Serge-Sound

The Portable Serge-Sound, is a full two-voice portable synth whose module compliment tips in favor of signal processing in the subtractive, nonsubtractive and distortion synthesis realms.

VCM1
1
Noise Source
1
Envelope Generator
1
1973 VCF
2
4in/1out Audio Mixer
2
Positive Slew
2
Triple Wave Shaper
1
Smooth & Stepped Generator
1
VCM2
1
VCM3
1
Negative Slew
2
1973 VCO
3
Resonant Equalizer
1
VCA
2
Audio Out
1
Xpander
3

Module Space Required: 250HP
System Enclosure(*): Studio 700 - 6U 126HP

Row 1: ES24, ES23, ASM324, ES14, CSG734, CGS734, ES20, ES20, ES78, ES78, ES06

Row 2: ES09, ES19, ASM324, ES15, ASM324, ES05, ASM324, ES15, ASM324, ES07, ES07, ES08, ASM306, Power Panel

The Portable Serge-Control

The Portable Serge-Control is a full two-voice portable synth whose module compliment tips in favor of increased control voltage generators for more Patch Programming opportunities.

Noise Source
1
Envelope Generator
1
1973 VCF
2
4in/1out Audio Mixer
1
Positive Slew
1
Voltage Processor
1
Smooth & Stepped Generator
2
Negative Slew
1
1973 VCO
2
Sequencer-Programmer
1
4-Stage Expander
1
VCA
2
Audio Out
1
Xpander
5
Analog Shift Register
2

Module Space Required: 244HP
System Enclosure(*): Studio 700 - 6U 126HP



(*) These are the recommended minimum size enclosures and are offered from our Studio Series of enclosures.
Larger enclosures may be offered if you wish to cater for future expansion.
Please email us if you wish to consider alternate enclosure solutions
