The Teaser Serge

This system is designed to introduce the new user to the Serge concept of Patch Programmability. Patch Programmability allows for multiple functions from a single module depending on how the module is patched.

The Teaser Serge  intentionally leaves out traditional modules such as VCOs, VCFs and VCAs but it is still an amazingly powerful grouping of modules because of Patch Programmability. For instance, in The Teaser Serge there are 4 modules that can be used as VCOs, 2 modules that can be used as VCFs, 2 modules that can be used as VCAs, 2 modules that can perform frequency division, 3 modules that can provide portamento, 4 modules that can be used as LFOs, 3 modules can provide traditional envelopes.

More selected functions that Patch Programmability provides in this system are S/H, random voltages, zero crossing detection and envelope following.

Noise Source
1
Envelope Generator
1
Positive Slew
1
Negative Slew
1
Smooth & Stepped Generator
1
Audio Out
1

Module Space Required: 64HP
System Enclosure(*): Studio 700 - 6U 42HP

Patch Sheet (.PDF)

Row 1: ES20, ES07, ES78, ES08

Row 2: ES15, ES05, ES06, ES09, ES19, ASM306, Power Panel



The Starter Serge

The Starter Serge builds upon The Teaser Serge in the same enclosure with the addition of a VCO, VCF and VCA bridging the synthesizer space between the east and west coast approaches.

Get all the modules at once or add them later. It’s up to you.

Noise Source
1
Envelope Generator
1
1973 VCF
1
Audio Mixer
1
Positive Slew
1
Smooth & Stepped Generator
1
Negative Slew
1
1973 VCO
1
VCA
1
Audio Out
1

Module Space Required: 58HP
System Enclosure(*): Studio 700 - 6U 84HP

Patch Sheet (.PDF)

Row 1: ES09, ES19, ES11, ES10, ES79, ES22, Power Panel

Row 2: ES02, ES09, ES19, ES20, ES07, ES78, ES08, ASM306

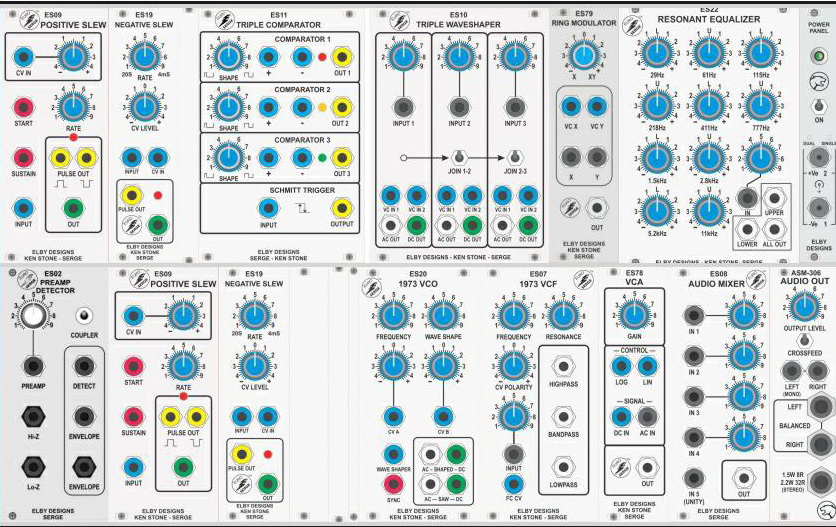

The Through Serge

The Through Serge is configured around a Preamp/Detector and 2 Positive/Negative Slew combinations for live EuroSerge performances with electro-acoustic instruments as the input.

It is based on the concepts outlined in the PoTW, Guitar Meets Serge.

ES02
Preamp Detector
1
1973 VCF
1
4in/1out Audio Mixer
1
Positive Slew
2
Triple Wave Shaper
1
Triple Comparator & Schmitt Trigger
1
Negative Slew
2
1973 VCO
1
Resonant Equalizer
1
VCA
1
Ring Modulator
1
Audio Out
1

Module Space Required: 154HP
System Enclosure(*): Studio 700 - 6U 84HP
