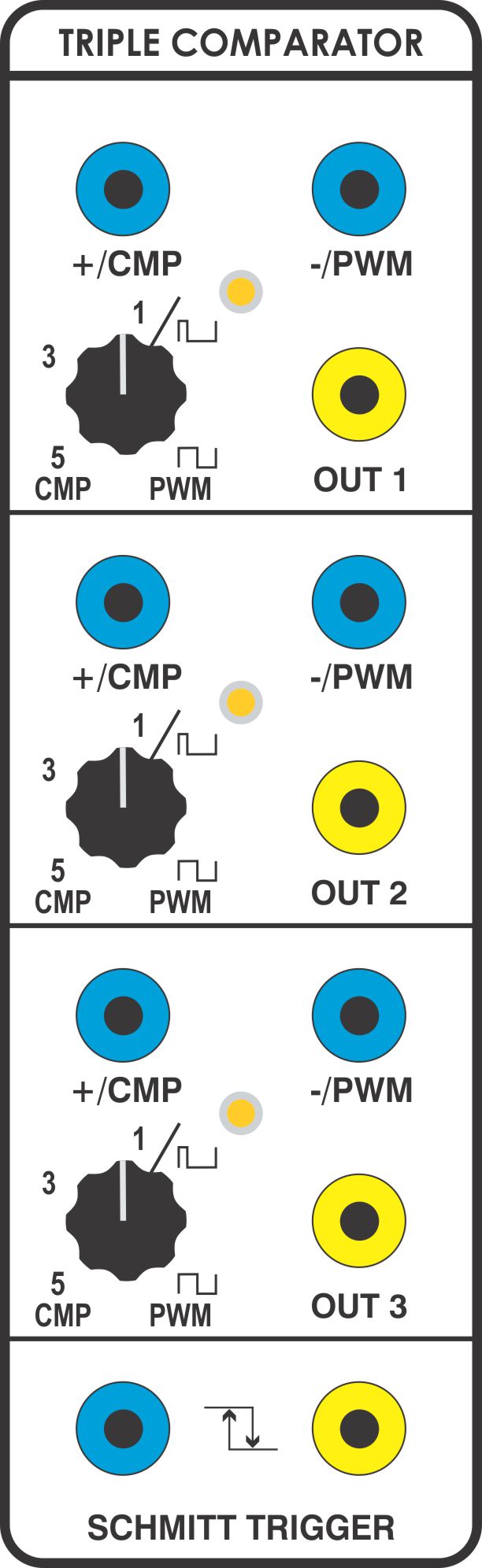

The CGS596 Triple Comparator consists of three independent, but identical, functions which are useful in the production of square waves and variable pulse waves. The Comparator reference level can be a time-varying control voltage, a complex audio signal, or a fixed preset voltage. Additionally, the comparators are useful for level detection and for logic decisions based on amplitude.

The module also contains a single, non-adjustable, Schmitt trigger. The output of the Schmitt trigger will rise to about 5 volts when the input falls below approximately 0.6 volts and will  fall to approximately 0 volts when the input rises over approximately 4.3 volts.
