Envelope Generator
Let's Go Shopping

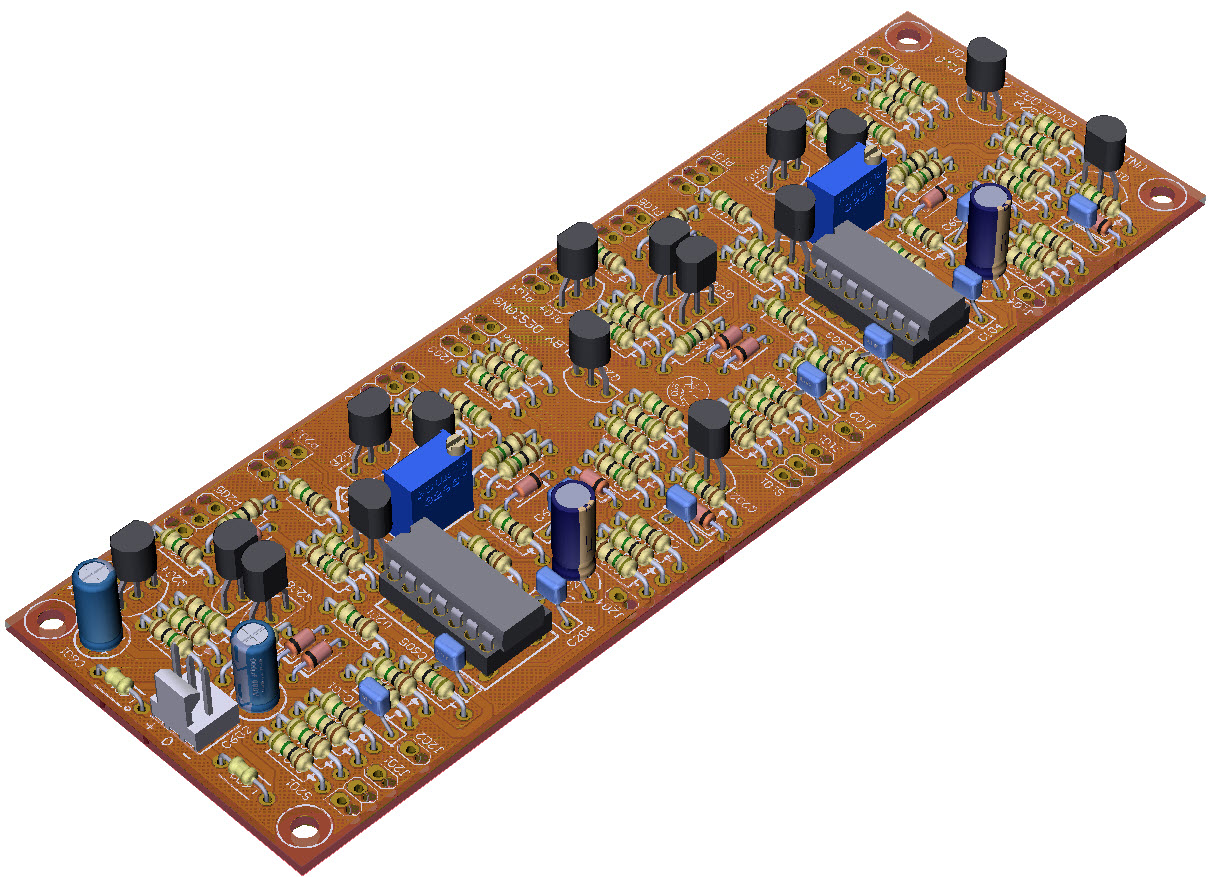

CGS378 Assembly

3D Model

This module is a very standard logarithmic response ADSR envelope generator. It is not voltage controlled. It is for use where a basic envelope generator is adequate. There are two identical envelope generators on the PCB.

How to use this module:

Connect your external GATE signal to the [GATE] input. Adjust the pots as required. Rotating the pots clockwise will increase the time of any particular stage, or in the case of [SUSTAIN] increase voltage of the sustain portion of the cycle. The output is exponential due to the basic resistor/capacitor configuration used in the timing cycle.

  • A push button [MANUAL] is supplied to provide a manual GATE signal. Upon the [GATE] input going HIGH the EG immediately begins it's ATTACK cycle. This will continue until one of the following occurs:
    • the [GATE] input returns to LOW. If this occurs, the EG immediately goes into its RELEASE cycle, the output decreasing to zero. Thus with longer attack times set, a short [GATE] signal will produce an envelope with a reduced output, which can be useful for expression.
    • the attack peak is reached (approximately 5 volts). When this occurs, the EG immediately goes into its DECAY cycle, where the output will decrease until it reaches the voltage set by the [SUSTAIN] pot. If this is zero, the output will drop to zero, effectively terminating the cycle. If it is above zero, this voltage will be held as long as the [GATE] input is HIGH. When the [GATE] input returns to LOW, the EG immediately goes into its RELEASE cycle, the output decreasing to zero.
    The retrigger input [RETRIG] restarts the ATTACK portion of the cycle if the [GATE] input is HIGH. It can be used to modulate the ATTACK, DECAY, SUSTAIN portion of the cycle. A rapid burst of pulses on this input can push the envelope higher than the usual peak if the [ATTACK] is set to a sufficiently short length. The LED and [ATTACK PULSE] output are active during the ATTACK part of the cycle. This allows the EG to be used as a gate to pulse converter, the pulse length controlled by the setting of the [ATTACK] pot.
  • The EG CANNOT be set to self oscillate or cycle.
PCB Dimensions: 2" x 6" with 3.2mm fixing points 0.15" from the edges
Power Consumption:
+12V @ mA
-12V @ mA
