SAMPLE & HOLD

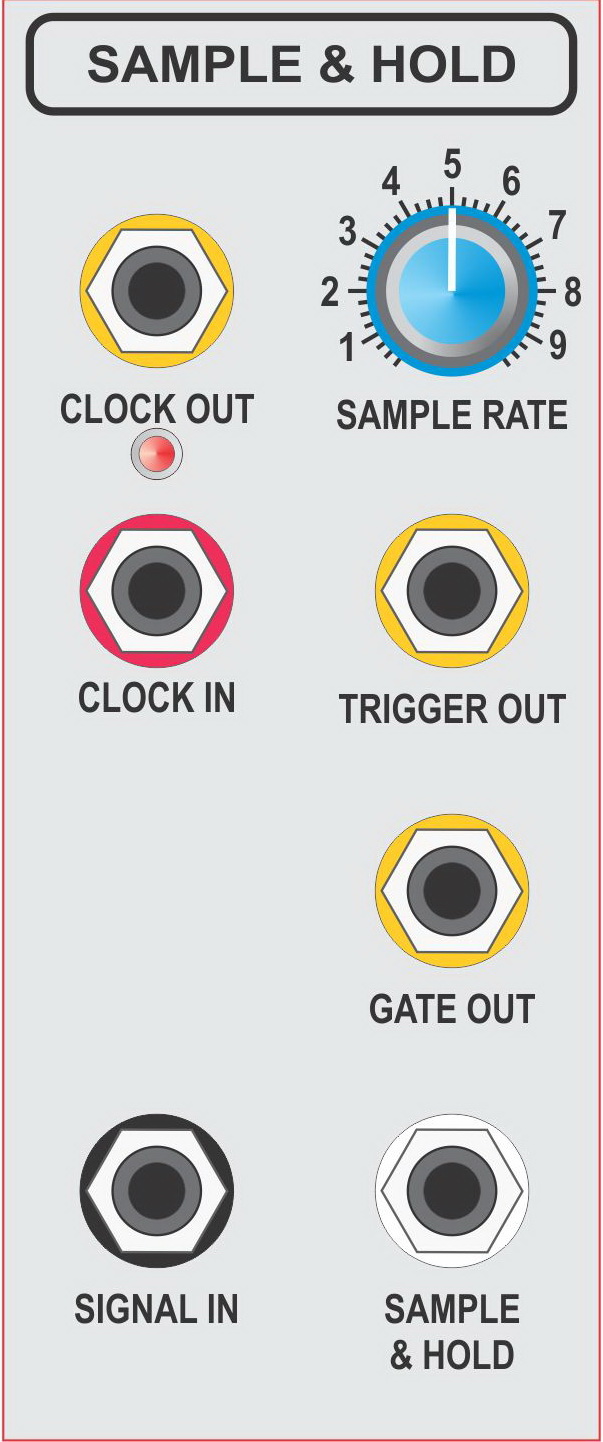

The Sample & Hold used in the ASM-2 is based on a fairly straight-forward and common design that uses an FET to store the `sampled' voltage on to a low-leakage capacitor.

The S&H sample clock may be derived from an external source or taken from the S&H low-frequency oscillator dedicated to the S&H module.

The S&H LFO has a frequency range of <0.5Hz to >650Hz.

The S&H will accept an input signal up to +/-10V.

An LED is included on the board to provide a visual status of the S&H trigger signal.
