ASM-2
Analogue Synthesiser

Return to ASM home page
HOME

ASM-2

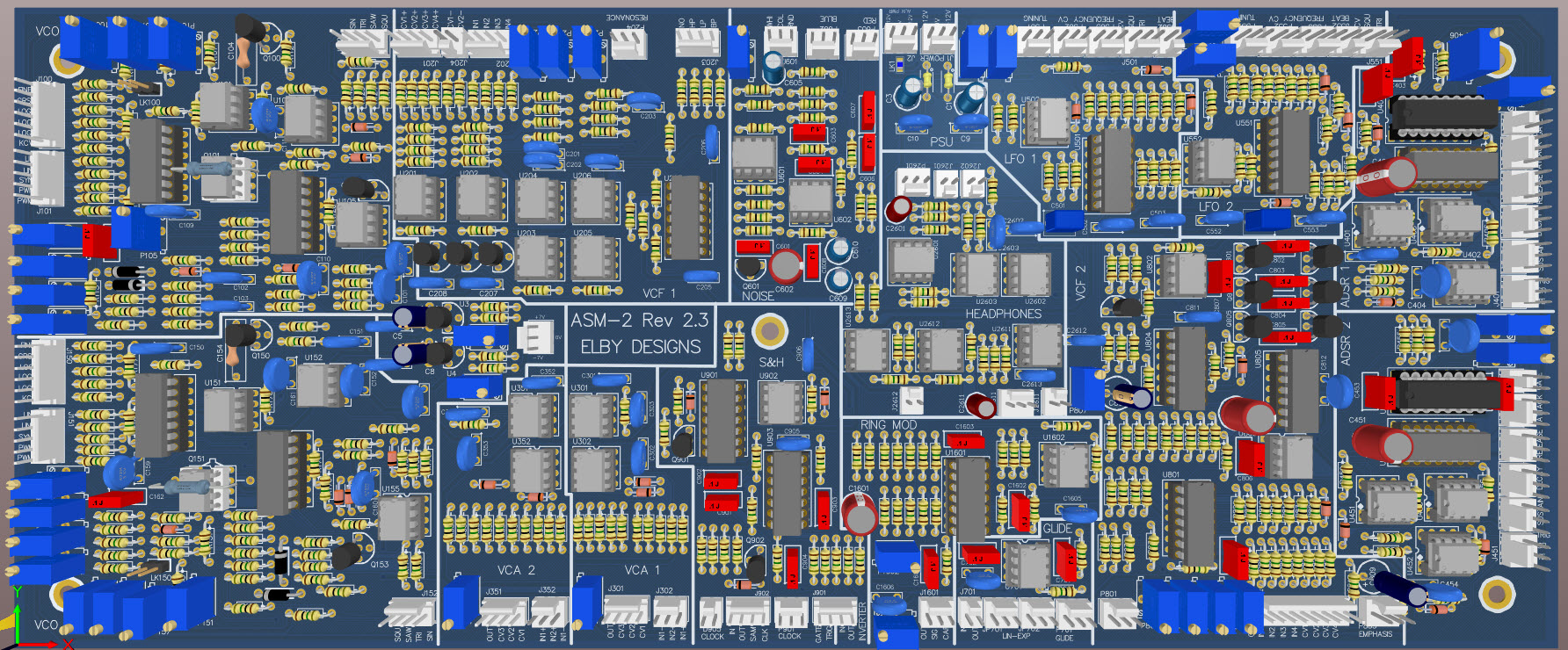

The ASM-2 expands upon the popular ASM-1 with a number of new features and enhancements as detailed below.

The ASM-2 brings the process of building a complete analog synthesiser closer to fruition.

Follow these links for details on building the ASM2-Genie, a hard-wired version of the ASM-2
and the ASM2-Wizard, a large format modular version and now the ASM2-Cougar with a front panel

Follow this link for an interesting slant on the use of an ASM-2 VCO and ASM2-VCF1 - RealThing

FEATURES

Items in red are enhancements over the ASM-1
A number of these refinements are courtesy of Magnus Danielson

Block Diagram of ASM-2 Board

Power requirements
voltage/current

-18 Volts @ 220mA
+18 Volts @ 240mA

VCO (x2)
inputs 6 x Exponential FM
2 x linear FM. +/-25% modulation from -15V to +15V
2 x pulse width. 0-100% from -5V to +5V
1 x sync with adjustable trigger level
outputs 1 x sawtooth
1 x rectangular
1 x triangle
1 x sine
extras

uses a +/-10V reference for higher stability
improved sync circuitry

VCF 1

state-variable

inputs 4 x cutoff CV+
1 x cutoff CV-
4 x signal in
outputs 1 x low-pass
1 x band-pass
1 x high-pass
1 x notch
extras Includes series resistors on all outputs

VCF 2

transistor ladder

inputs 3 x signal in
3x cutoffl CV
outputs 1 x output
VCA (x2)
inputs 2 x +signal in
1 x -signal in
3 x amplitude control CV
outputs 1 x output
extras Includes option for de-oscillation capacitor
ADSR (x2)
inputs

1 x GATE
1 x Re-Trigger

outputs 1 x ADSR out
extras Includes GATE input diode protection and ATTACK current limit protection
VCLFO (x2)
outputs 1 x triangle out
1 x square out
extras

Includes voltage control of frequency
LED status indication of frequency

outputs 1 x white noise out
1 x coloured noise out
1 x random voltage out
extras Includes red/blue control of violet noise
inputs 1 x CV in
outputs 1 x CV out
extras Includes on-board/off-board jumper option for linear and exponential glide slopes
inputs

1 x CV in
1 x signal in

outputs

1 x CV out
1 x GATE out (optional)
1 x TRIGGER out (optional)

1 x Uncommited Inverter

inputs

1 x X input
1 x Y input

outputs Sum and Difference of X and Y
  • All of the connections for inputs, outputs and panel components are bought out to the edge of the board on a 0.1" pitch allowing for several termination options including:- hard-wiring, terminal-pin termination, crimped termination and screw-terminal connection.
  • All trimpots are bought out to the edge of the pcb
